TiXmlBase Class Referenceabstract

TiXmlBase is a base class for every class in TinyXml. More...

#include "tinyxml.h"

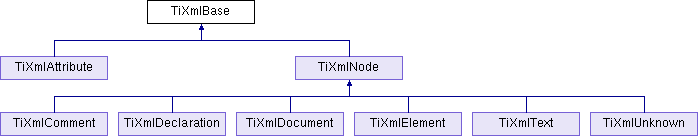

Inheritance diagram for TiXmlBase:
TiXmlAttribute TiXmlNode TiXmlComment TiXmlDeclaration TiXmlDocument TiXmlElement TiXmlText TiXmlUnknown

Public Types

enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_PARSING_ELEMENT,
  TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES, TIXML_ERROR_PARSING_EMPTY,
  TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT, TIXML_ERROR_PARSING_DECLARATION,
  TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA, TIXML_ERROR_DOCUMENT_TOP_ONLY,
  TIXML_ERROR_STRING_COUNT
}


Public Member Functions

int Column () const
 See Row() More...

void * GetUserData ()
 Get a pointer to arbitrary user data. More...

const void * GetUserData () const
 Get a pointer to arbitrary user data. More...

virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

int Row () const
 Return the position, in the original source file, of this node or attribute. More...

void SetUserData (void *user)
 Set a pointer to arbitrary user data. More...


Static Public Member Functions

static void EncodeString (const TiXmlString &str, TiXmlString *out)
 Expands entities in a string. More...

static bool IsWhiteSpaceCondensed ()
 Return the current white space setting. More...

static void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not. More...


Static Public Attributes

static const int utf8ByteTable [256]


Friends

class TiXmlDocument

class TiXmlElement

class TiXmlNode


Detailed Description

TiXmlBase is a base class for every class in TinyXml.

It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

A Document can contain: Element (container or leaf)
                        Comment (leaf)
                        Unknown (leaf)
                        Declaration( leaf )

An Element can contain: Element (container or leaf)
                        Text    (leaf)
                        Attributes (not on tree)
                        Comment (leaf)
                        Unknown (leaf)

A Decleration contains: Attributes (not on tree)

Definition at line 194 of file tinyxml.h.

Member Function Documentation

◆ Column()

int TiXmlBase::Column ( ) const
inline

See Row()

Definition at line 245 of file tinyxml.h.

◆ EncodeString()

void TiXmlBase::EncodeString ( const TiXmlString &  str,
TiXmlString *  out
)
static

Expands entities in a string.

Note this should not contian the tag's '<', '>', etc, or they will be transformed into entities!

Definition at line 74 of file tinyxml.cpp.

Referenced by TiXmlPrinter::Visit().

◆ GetUserData() [1/2]

void* TiXmlBase::GetUserData ( )
inline

Get a pointer to arbitrary user data.

Definition at line 248 of file tinyxml.h.

◆ GetUserData() [2/2]

const void* TiXmlBase::GetUserData ( ) const
inline

Get a pointer to arbitrary user data.

Definition at line 249 of file tinyxml.h.

◆ IsWhiteSpaceCondensed()

static bool TiXmlBase::IsWhiteSpaceCondensed ( )
inlinestatic

Return the current white space setting.

Definition at line 224 of file tinyxml.h.

◆ Print()

virtual void TiXmlBase::Print ( FILE *  cfile,
int  depth
) const
pure virtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, TiXmlElement, and TiXmlAttribute.

Referenced by TiXmlDocument::Print(), print_xml(), and print_xml_to_file().

◆ Row()

int TiXmlBase::Row ( ) const
inline

Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also
TiXmlDocument::SetTabSize()

Definition at line 244 of file tinyxml.h.

◆ SetCondenseWhiteSpace()

static void TiXmlBase::SetCondenseWhiteSpace ( bool  condense)
inlinestatic

The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this value is not thread safe.

Definition at line 221 of file tinyxml.h.

◆ SetUserData()

void TiXmlBase::SetUserData ( void *  user)
inline

Set a pointer to arbitrary user data.

Definition at line 247 of file tinyxml.h.

Member Data Documentation

◆ utf8ByteTable

const int TiXmlBase::utf8ByteTable
static
Initial value:
=
{
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3,
4, 4, 4, 4, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1
}

Definition at line 253 of file tinyxml.h.


The documentation for this class was generated from the following files:
