By default, Panda3D runs a task that enables you to move
the camera using the mouse.
The keys to navigate are:
- Left Button: pan left and right
- Right Button: move forwards and backwards
- Middle Button: rotate around the origin of the application
- Right and Middle Buttons: roll the point of view around the view axis
Go ahead and try this camera control system. The
problem with this camera control system is that it is sometimes
awkward, it is not always easy to get the camera pointed in the
direction we want.
Instead, we are going to write a task that
controls the camera's position explicitly. A task is nothing
but a subroutine that gets called every frame. Update your code
as follows:
import direct.directbase.DirectStart from direct.task import Task from direct.actor import Actor import math #Load the first environment model environ = loader.loadModel("models/environment") environ.reparentTo(render) environ.setScale(0.25,0.25,0.25) environ.setPos(-8,42,0) #Task to move the camera def SpinCameraTask(task): angledegrees = task.time * 6.0 angleradians = angledegrees * (math.pi / 180.0) base.camera.setPos(20*math.sin(angleradians),-20.0*math.cos(angleradians),3) base.camera.setHpr(angledegrees, 0, 0) return Task.cont taskMgr.add(SpinCameraTask, "SpinCameraTask") run()
The function taskMgr.add tells panda's task manager to call the subroutine SpinCameraTask every frame. This is a subroutine that we have written to control the camera. As long as the subroutine SpinCameraTask returns the constant Task.cont, the task manager will continue to call it every frame.
In our code, the subroutine SpinCameraTask() calculates the desired position of
the camera based on how much time has elapsed. The camera rotates 6
degrees every second. The first two lines compute the desired
orientation of the camera, first in degrees, then in radians. The setPos call actually sets the position of the camera.
(Remember that Y is horizontal and Z is vertical, so the position is changed by animating X and Y while Z is left fixed at 3 units above ground level.) The setHpr call actually sets the orientation.

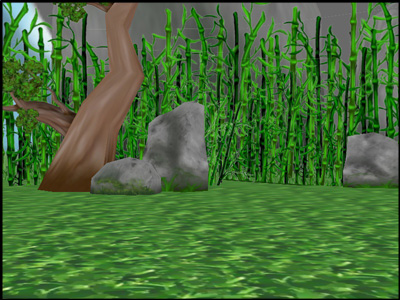

The camera should no longer be underground, and
furthermore, the camera should now be rotating about the clearing:
For more information about tasks, visit this page.
|
