This is an abstract class for any volume in any sense which can be said to define the locality of reference of a node in a graph, along with all of its descendants. More...

#include "boundingVolume.h"

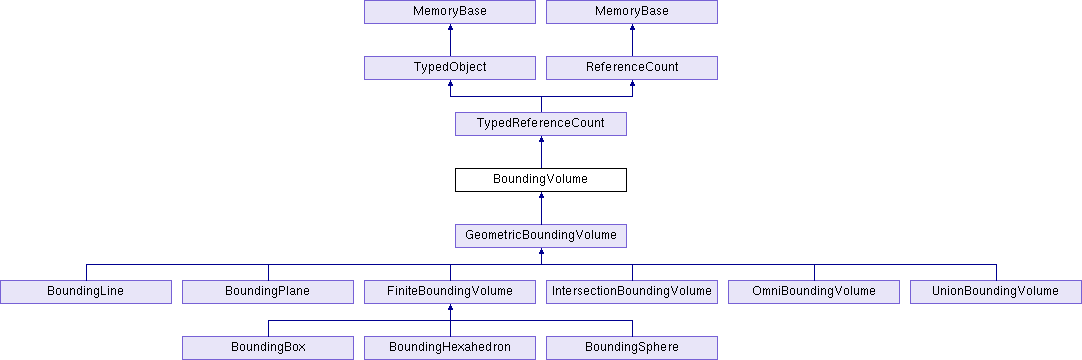

Inheritance diagram for BoundingVolume:

Public Types
enum	BoundsType { BT_default, BT_best, BT_sphere, BT_box, BT_fastest }

enum	IntersectionFlags { IF_no_intersection = 0, IF_possible = 0x01, IF_some = 0x02, IF_all = 0x04, IF_dont_understand = 0x08 }

Public Member Functions
bool	around (const BoundingVolume first, const BoundingVolume last)
	Resets the volume to enclose only the volumes indicated. More...

virtual const BoundingBox *	as_bounding_box () const
	Virtual downcast method. More...

virtual const BoundingHexahedron *	as_bounding_hexahedron () const
	Virtual downcast method. More...

virtual const BoundingLine *	as_bounding_line () const
	Virtual downcast method. More...

virtual const BoundingPlane *	as_bounding_plane () const
	Virtual downcast method. More...

virtual const BoundingSphere *	as_bounding_sphere () const
	Virtual downcast method. More...

virtual const FiniteBoundingVolume *	as_finite_bounding_volume () const
	Virtual downcast method. More...

virtual GeometricBoundingVolume *	as_geometric_bounding_volume ()
	Virtual downcast method. More...

virtual const GeometricBoundingVolume *	as_geometric_bounding_volume () const
	Virtual downcast method. More...

int	contains (const BoundingVolume *vol) const
	Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume. More...

bool	extend_by (const BoundingVolume *vol)
	Increases the size of the volume to include the given volume. More...

virtual TypeHandle	force_init_type ()

virtual TypeHandle	get_type () const

bool	is_empty () const
	Any kind of volume might be empty. More...

bool	is_infinite () const
	The other side of the empty coin is an infinite volume. More...

virtual BoundingVolume *	make_copy () const =0

virtual void	output (std::ostream &out) const =0

void	set_infinite ()
	Marks the volume as infinite, even if it is normally finite. More...

virtual void	write (std::ostream &out, int indent_level=0) const

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static BoundsType	string_bounds_type (const std::string &str)
	Returns the BoundsType corresponding to the indicated string. More...

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Friends
class	BoundingBox

class	BoundingHexahedron

class	BoundingLine

class	BoundingPlane

class	BoundingSphere

class	IntersectionBoundingVolume

class	UnionBoundingVolume

Additional Inherited Members
Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Detailed Description

This is an abstract class for any volume in any sense which can be said to define the locality of reference of a node in a graph, along with all of its descendants.

It is not necessarily a geometric volume (although see GeometricBoundingVolume); this is simply an abstract interface for bounds of any sort.

Definition at line 41 of file boundingVolume.h.

Member Function Documentation

◆ around()

bool BoundingVolume::around	(	const BoundingVolume **	first,
		const BoundingVolume **	last
	)

Resets the volume to enclose only the volumes indicated.

Returns true if successful, false if the volume doesn't know how to do that or can't do that.

Definition at line 40 of file boundingVolume.cxx.

References is_empty().

Referenced by GeometricBoundingVolume::around().

◆ as_bounding_box()

const BoundingBox * BoundingVolume::as_bounding_box ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in BoundingBox.

Definition at line 126 of file boundingVolume.cxx.

◆ as_bounding_hexahedron()

const BoundingHexahedron * BoundingVolume::as_bounding_hexahedron ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in BoundingHexahedron.

Definition at line 135 of file boundingVolume.cxx.

◆ as_bounding_line()

const BoundingLine * BoundingVolume::as_bounding_line ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in BoundingLine.

Definition at line 144 of file boundingVolume.cxx.

◆ as_bounding_plane()

const BoundingPlane * BoundingVolume::as_bounding_plane ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in BoundingPlane.

Definition at line 153 of file boundingVolume.cxx.

◆ as_bounding_sphere()

const BoundingSphere * BoundingVolume::as_bounding_sphere ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in BoundingSphere.

Definition at line 117 of file boundingVolume.cxx.

◆ as_finite_bounding_volume()

const FiniteBoundingVolume * BoundingVolume::as_finite_bounding_volume ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in FiniteBoundingVolume.

Definition at line 108 of file boundingVolume.cxx.

◆ as_geometric_bounding_volume() [1/2]

GeometricBoundingVolume * BoundingVolume::as_geometric_bounding_volume ( )

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in GeometricBoundingVolume.

Definition at line 90 of file boundingVolume.cxx.

◆ as_geometric_bounding_volume() [2/2]

const GeometricBoundingVolume * BoundingVolume::as_geometric_bounding_volume ( ) const

virtual

Virtual downcast method.

Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.

Reimplemented in GeometricBoundingVolume.

Definition at line 99 of file boundingVolume.cxx.

◆ contains()

int BoundingVolume::contains ( const BoundingVolume * vol ) const

inline

Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume.

Definition at line 80 of file boundingVolume.I.

References is_empty(), and is_infinite().

Referenced by GeometricBoundingVolume::contains().

◆ extend_by()

bool BoundingVolume::extend_by ( const BoundingVolume * vol )

inline

Increases the size of the volume to include the given volume.

Definition at line 61 of file boundingVolume.I.

References is_empty(), is_infinite(), and set_infinite().

Referenced by GeometricBoundingVolume::extend_by().

◆ is_empty()

bool BoundingVolume::is_empty ( ) const

inline

Any kind of volume might be empty.

This is a degenerate volume that contains no points; it's not the same as, for instance, a sphere with radius zero, since that contains one point (the center). It intersects with no other volumes.

Definition at line 29 of file boundingVolume.I.

Referenced by UnionBoundingVolume::add_component(), around(), GeometricBoundingVolume::contains(), contains(), extend_by(), and PT().

◆ is_infinite()

bool BoundingVolume::is_infinite ( ) const

inline

The other side of the empty coin is an infinite volume.

This is a degenerate state of a normally finite volume that contains all points. (Note that some kinds of infinite bounding volumes, like binary separating planes, do not contain all points and thus correctly return is_infinite() == false, even though they are technically infinite. This is a special case of the word 'infinite' meaning the volume covers all points in space.)

It completely intersects with all other volumes except empty volumes.

Definition at line 44 of file boundingVolume.I.

Referenced by UnionBoundingVolume::add_component(), contains(), extend_by(), and PT().

◆ set_infinite()

void BoundingVolume::set_infinite ( )

inline

Marks the volume as infinite, even if it is normally finite.

You can think of this as an infinite extend_by() operation.

Definition at line 53 of file boundingVolume.I.

Referenced by extend_by().

◆ string_bounds_type()

BoundingVolume::BoundsType BoundingVolume::string_bounds_type ( const std::string & str )

static

Returns the BoundsType corresponding to the indicated string.

Definition at line 161 of file boundingVolume.cxx.

The documentation for this class was generated from the following files:

panda/src/mathutil/boundingVolume.h
panda/src/mathutil/boundingVolume.cxx
panda/src/mathutil/boundingVolume.I
