A map of string (layer name) to DXFLayer: that is, the layers of a file ordered by name. More...
#include "dxfLayerMap.h"

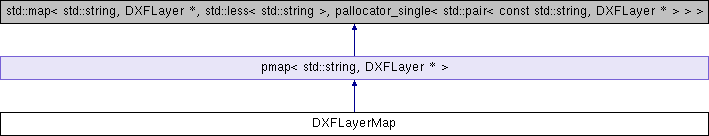

Inheritance diagram for DXFLayerMap:
Public Member Functions | |
| DXFLayer * | get_layer (const std::string &name, DXFFile *dxffile) |
| Looks up the layer name in the map, and returns a pointer to the associated DXFLayer. More... | |
 Public Member Functions inherited from pmap< std::string, DXFLayer * > | |
| pmap (TypeHandle type_handle=pmap_type_handle) | |
| pmap (const std::less< std::string > &comp, TypeHandle type_handle=pmap_type_handle) | |
Additional Inherited Members | |
| Public Types inherited from pmap< std::string, DXFLayer * > | |
| typedef pallocator_single< std::pair< const std::string, DXFLayer * > > | allocator |
| typedef std::map< std::string, DXFLayer *, std::less< std::string >, allocator > | base_class |
Detailed Description
A map of string (layer name) to DXFLayer: that is, the layers of a file ordered by name.
This is used as a lookup within DXFFile to locate the layer associated with a particular entity.
Definition at line 28 of file dxfLayerMap.h.
Member Function Documentation
◆ get_layer()
Looks up the layer name in the map, and returns a pointer to the associated DXFLayer.
If this is the first time this layer name has been used, creates a new DXFLayer by the given name. In this case, it calls dxffile->new_layer() to create the layer, allowing user code to override this function to create a specialized time, if desired.
Definition at line 25 of file dxfLayerMap.cxx.
The documentation for this class was generated from the following files:
- pandatool/src/dxf/dxfLayerMap.h
- pandatool/src/dxf/dxfLayerMap.cxx
