FltGeometry Class Reference

This is a base class for both FltFace and FltMesh, which are two different kinds of geometric primitives that might be encountered in a MultiGen file. More...

#include "fltGeometry.h"

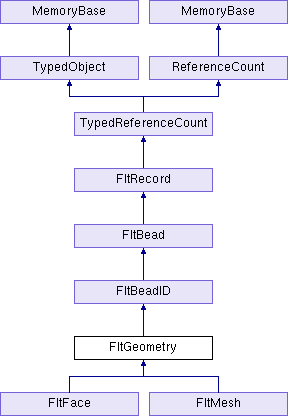

Inheritance diagram for FltGeometry:
FltBeadID FltBead FltRecord TypedReferenceCount TypedObject ReferenceCount MemoryBase MemoryBase FltFace FltMesh

Public Types

enum  BillboardType { BT_none = 0, BT_fixed = 1, BT_axial = 2, BT_point = 4 }

enum  DrawType {
  DT_solid_cull_backface = 0, DT_solid_no_cull = 1, DT_wireframe = 2, DT_wireframe_close = 3,
  DT_wireframe_highlight = 4, DT_omni_light = 8, DT_uni_light = 9, DT_bi_light = 10
}

enum  Flags {
  F_terrain = 0x80000000, F_no_color = 0x40000000, F_no_alt_color = 0x20000000, F_packed_color = 0x10000000,
  F_terrain_footprint = 0x08000000, F_hidden = 0x04000000
}

enum  LightMode { LM_face_no_normal = 0, LM_vertex_no_normal = 1, LM_face_with_normal = 2, LM_vertex_with_normal = 3 }


Public Member Functions

 FltGeometry (FltHeader *header)

virtual TypeHandle force_init_type ()

LColor get_alt_color () const
 If has_alt_color() indicates true, returns the alternate color of the face, as a four-component value (including alpha as the transparency channel). More...

LRGBColor get_alt_rgb () const
 If has_alt_color() indicates true, returns the alternate color of the face, as a three-component value ignoring transparency. More...

LColor get_color () const
 Returns the primary color of the face, as a four-component value (including alpha as the transparency channel). More...

FltMaterialget_material () const
 Returns the material applied to this face, or NULL if no material was applied. More...

LRGBColor get_rgb () const
 Returns the primary color of the face, as a three-component value ignoring transparency. More...

FltTextureget_texture () const
 Returns the texture applied to this face, or NULL if no texture was applied. More...

virtual TypeHandle get_type () const

bool has_alt_color () const
 Returns true if the face has an alternate color indicated, false otherwise. More...

bool has_color () const
 Returns true if the face has a primary color indicated, false otherwise. More...

bool has_material () const
 Returns true if the face has a material applied, false otherwise. More...

bool has_texture () const
 Returns true if the face has a texture applied, false otherwise. More...

void set_color (const LColor &color)
 Sets the primary color of the face, using the packed color convention. More...

void set_material (FltMaterial *material)
 Applies the indicated material to this face, or if the material is NULL, clears it. More...

void set_rgb (const LRGBColor &rgb)
 Sets the primary color of the face, using the packed color convention; does not affect transparency. More...

void set_texture (FltTexture *texture)
 Applies the indicated texture to this face, or if the texture is NULL, clears it. More...

- Public Member Functions inherited from FltBeadID
 FltBeadID (FltHeader *header)

const std::string & get_id () const
 Returns the id (name) of this particular bead. More...

virtual void output (std::ostream &out) const
 Writes a quick one-line description of the record, but not its children. More...

void set_id (const std::string &id)
 Changes the id (name) of this particular bead. More...

- Public Member Functions inherited from FltBead
 FltBead (FltHeader *header)

void add_transform_step (FltTransformRecord *record)
 Applies the indicated transform step to the net transformation applied to the bead. More...

void clear_transform ()
 Removes any transform matrix and all transform steps on this bead. More...

int get_num_transform_steps () const
 Returns the number of individual steps that define the net transform on this bead as returned by set_transform(). More...

int get_replicate_count () const
 Returns the replicate count of this bead. More...

const LMatrix4d & get_transform () const
 Returns the single-precision 4x4 matrix that represents the transform applied to this bead, or the identity matrix if the bead has not been transformed. More...

FltTransformRecordget_transform_step (int n)
 Returns the nth individual step that defines the net transform on this bead. More...

const FltTransformRecordget_transform_step (int n) const
 Returns the nth individual step that defines the net transform on this bead. More...

bool has_transform () const
 Returns true if the bead has been transformed, false otherwise. More...

void set_replicate_count (int count)
 Changes the replicate count of this bead. More...

void set_transform (const LMatrix4d &mat)
 Replaces the transform matrix on this bead. More...

- Public Member Functions inherited from FltRecord
 FltRecord (FltHeader *header)

void add_ancillary (FltRecord *ancillary)
 Adds a new unsupported ancillary record to the end of the list of ancillary records for this record. More...

void add_child (FltRecord *child)
 Adds a new child to the end of the list of children for this record. More...

void add_extension (FltRecord *extension)
 Adds a new extension to the end of the list of extensions for this record. More...

void add_subface (FltRecord *subface)
 Adds a new subface to the end of the list of subfaces for this record. More...

virtual void apply_converted_filenames ()
 Walks the hierarchy at this record and below and copies the _converted_filename record into the _orig_filename record, so the flt file will be written out with the converted filename instead of what was originally read in. More...

void check_remaining_size (const DatagramIterator &di, const std::string &name=std::string()) const
 Checks that the iterator has no bytes left, as it should at the end of a successfully read record. More...

void clear_ancillary ()
 Removes all unsupported ancillary records from this record. More...

void clear_children ()
 Removes all children from this record. More...

void clear_comment ()
 Removes the comment for this record. More...

void clear_extensions ()
 Removes all extensions from this record. More...

void clear_subfaces ()
 Removes all subfaces from this record. More...

FltRecordget_ancillary (int n) const
 Returns the nth unsupported ancillary record of this record. More...

FltRecordget_child (int n) const
 Returns the nth child of this record. More...

const std::string & get_comment () const
 Retrieves the comment for this record, or empty string if the record has no comment. More...

FltRecordget_extension (int n) const
 Returns the nth extension of this record. More...

int get_num_ancillary () const
 Returns the number of unsupported ancillary records of this record. More...

int get_num_children () const
 Returns the number of child records of this record. More...

int get_num_extensions () const
 Returns the number of extension attribute records for this object. More...

int get_num_subfaces () const
 Returns the number of subface records of this record. More...

FltRecordget_subface (int n) const
 Returns the nth subface of this record. More...

bool has_comment () const
 Returns true if this record has a nonempty comment, false otherwise. More...

void set_comment (const std::string &comment)
 Changes the comment for this record. More...

virtual void write (std::ostream &out, int indent_level=0) const
 Writes a multiple-line description of the record and all of its children. More...

- Public Member Functions inherited from TypedReferenceCount
 TypedReferenceCount (const TypedReferenceCount &copy)

void operator= (const TypedReferenceCount &copy)

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from FltBeadID
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from FltBead
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from FltRecord
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()


Public Attributes

int _alt_color_index

int _alt_color_name_index

FltPackedColor _alt_packed_color

BillboardType _billboard_type

int _color_index

int _color_name_index

int _detail_texture_index

int _dfad_feature_id

int _dfad_material_code

DrawType _draw_type

unsigned int _flags

int _ir_color

int _ir_material_code

LightMode _light_mode

int _line_style_index

int _lod_generation_control

int _material_index

FltPackedColor _packed_color

int _relative_priority

int _texture_index

int _texture_mapping_index

bool _texwhite

int _transparency

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...


Detailed Description

This is a base class for both FltFace and FltMesh, which are two different kinds of geometric primitives that might be encountered in a MultiGen file.

They have similar properties.

Definition at line 33 of file fltGeometry.h.

Member Function Documentation

◆ get_alt_color()

LColor FltGeometry::get_alt_color ( ) const

If has_alt_color() indicates true, returns the alternate color of the face, as a four-component value (including alpha as the transparency channel).

Definition at line 144 of file fltGeometry.cxx.

◆ get_alt_rgb()

LRGBColor FltGeometry::get_alt_rgb ( ) const

If has_alt_color() indicates true, returns the alternate color of the face, as a three-component value ignoring transparency.

Definition at line 156 of file fltGeometry.cxx.

◆ get_color()

LColor FltGeometry::get_color ( ) const

Returns the primary color of the face, as a four-component value (including alpha as the transparency channel).

If has_color() is false, the result is white, but still reflects the transparency correctly.

Definition at line 59 of file fltGeometry.cxx.

References get_material(), has_color(), has_material(), and has_texture().

◆ get_material()

FltMaterial * FltGeometry::get_material ( ) const
inline

Returns the material applied to this face, or NULL if no material was applied.

Definition at line 58 of file fltGeometry.I.

Referenced by get_color().

◆ get_rgb()

LRGBColor FltGeometry::get_rgb ( ) const

Returns the primary color of the face, as a three-component value ignoring transparency.

Definition at line 101 of file fltGeometry.cxx.

References has_color(), and has_texture().

◆ get_texture()

FltTexture * FltGeometry::get_texture ( ) const
inline

Returns the texture applied to this face, or NULL if no texture was applied.

Definition at line 27 of file fltGeometry.I.

◆ has_alt_color()

bool FltGeometry::has_alt_color ( ) const

Returns true if the face has an alternate color indicated, false otherwise.

Definition at line 135 of file fltGeometry.cxx.

◆ has_color()

bool FltGeometry::has_color ( ) const
inline

Returns true if the face has a primary color indicated, false otherwise.

Definition at line 80 of file fltGeometry.I.

References has_material().

Referenced by get_color(), and get_rgb().

◆ has_material()

bool FltGeometry::has_material ( ) const
inline

Returns true if the face has a material applied, false otherwise.

Definition at line 49 of file fltGeometry.I.

Referenced by get_color(), and has_color().

◆ has_texture()

bool FltGeometry::has_texture ( ) const
inline

Returns true if the face has a texture applied, false otherwise.

Definition at line 18 of file fltGeometry.I.

Referenced by get_color(), and get_rgb().

◆ set_color()

void FltGeometry::set_color ( const LColor &  color)

Sets the primary color of the face, using the packed color convention.

Definition at line 91 of file fltGeometry.cxx.

References set_rgb().

◆ set_material()

void FltGeometry::set_material ( FltMaterial material)
inline

Applies the indicated material to this face, or if the material is NULL, clears it.

Definition at line 67 of file fltGeometry.I.

◆ set_rgb()

void FltGeometry::set_rgb ( const LRGBColor &  rgb)

Sets the primary color of the face, using the packed color convention; does not affect transparency.

Definition at line 122 of file fltGeometry.cxx.

References FltPackedColor::set_rgb().

Referenced by set_color().

◆ set_texture()

void FltGeometry::set_texture ( FltTexture texture)
inline

Applies the indicated texture to this face, or if the texture is NULL, clears it.

Definition at line 36 of file fltGeometry.I.


The documentation for this class was generated from the following files:
