STBasicTerrain Class Reference

A specific implementation of STTerrain that supports basic heightmaps loaded from an image file, as described in a terrain.txt file similar to those provided with the SpeedTree example application. More...

#include "stBasicTerrain.h"

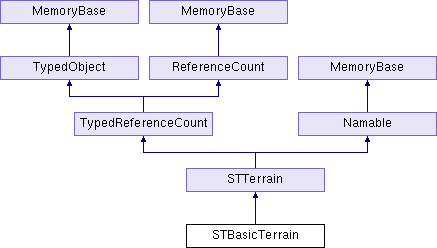

Inheritance diagram for STBasicTerrain:
STTerrain TypedReferenceCount Namable TypedObject ReferenceCount MemoryBase MemoryBase MemoryBase

Public Member Functions

 STBasicTerrain (const STBasicTerrain &copy)
 Not sure whether any derived classes will implement the copy constructor, but it's defined here at the base level just in case. More...

void clear ()
 Resets the terrain to its initial, unloaded state. More...

virtual void fill_vertices (GeomVertexData *data, PN_stdfloat start_x, PN_stdfloat start_y, PN_stdfloat size_xy, int num_xy) const
 After load_data() has been called, this will be called occasionally to populate the vertices for a terrain cell. More...

virtual TypeHandle force_init_type ()

virtual PN_stdfloat get_height (PN_stdfloat x, PN_stdfloat y) const
 After load_data() has been called, this should return the computed height value at point (x, y) of the terrain, where x and y are unbounded and may refer to any 2-d point in space. More...

const Filenameget_height_map () const
 Returns the image filename that defines the height map of the terrain. More...

PN_stdfloat get_size () const
 Returns the length, in scene graph units, of one edge of the heightmap as it is manifested by the terrain. More...

virtual PN_stdfloat get_slope (PN_stdfloat x, PN_stdfloat y) const
 After load_data() has been called, this should return the directionless slope at point (x, y) of the terrain, where 0.0 is flat and 1.0 is vertical. More...

virtual PN_stdfloat get_smooth_height (PN_stdfloat x, PN_stdfloat y, PN_stdfloat radius) const
 After load_data() has been called, this should return the approximate average height value over a circle of the specified radius, centered at point (x, y) of the terrain. More...

virtual TypeHandle get_type () const

virtual void load_data ()
 This will be called at some point after initialization. More...

virtual void output (std::ostream &out) const

void set_height_map (const Filename &height_map)
 Specifies the image filename that will define the height map of the terrain. More...

bool setup_terrain (const Filename &terrain_filename)
 Sets up the terrain by reading a terrain.txt file as defined by SpeedTree. More...

bool setup_terrain (std::istream &in, const Filename &pathname)
 Sets up the terrain by reading a terrain.txt file as defined by SpeedTree. More...

virtual void write (std::ostream &out, int indent_level=0) const

- Public Member Functions inherited from STTerrain
PN_stdfloat get_max_height () const
 Returns the largest height value that might be returned by get_height(). More...

PN_stdfloat get_min_height () const
 Returns the smallest height value that might be returned by get_height(). More...

const Filenameget_normal_map () const
 Returns the normal map that should be applied to the terrain. More...

int get_num_splat_layers () const
 Returns the number of splat layers that are to be applied to the terrain. More...

const Filenameget_splat_layer (int n) const
 Returns the nth splat layer that is to be applied to the terrain. More...

LColor get_splat_layer_color (int n) const
 Returns the overall color of the nth splat layer. More...

PN_stdfloat get_splat_layer_tiling (int n) const
 Returns the tiling value of the nth splat layer. More...

const Filenameget_splat_map () const
 Returns the splat map that should be applied to the terrain. More...

const SpeedTree::SVertexAttribDesc * get_st_vertex_format () const
 Returns a pointer to the SpeedTree array of vertex attribs that defines the vertex format for SpeedTree. More...

const GeomVertexFormatget_vertex_format ()
 Returns the vertex format of the vertex array that is supported by this terrain data. More...

bool is_valid () const
 Returns true if the terrain data is well-defined and ready to use. More...

bool placement_is_acceptable (PN_stdfloat x, PN_stdfloat y, PN_stdfloat height_min, PN_stdfloat height_max, PN_stdfloat slope_min, PN_stdfloat slope_max)
 Returns true if the elevation and slope of point (x, y) fall within the requested limits, false otherwise. More...

- Public Member Functions inherited from TypedReferenceCount
 TypedReferenceCount (const TypedReferenceCount &copy)

void operator= (const TypedReferenceCount &copy)

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...

- Public Member Functions inherited from Namable
 Namable (const std::string &initial_name="")

void clear_name ()
 Resets the Namable's name to empty. More...

const std::string & get_name () const

bool has_name () const
 Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void output (std::ostream &out) const
 Outputs the Namable. More...

void set_name (const std::string &name)


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from STTerrain
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from Namable
static TypeHandle get_class_type ()

static void init_type ()


Additional Inherited Members

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...

- Public Attributes inherited from Namable
 get_name

 set_name


Detailed Description

A specific implementation of STTerrain that supports basic heightmaps loaded from an image file, as described in a terrain.txt file similar to those provided with the SpeedTree example application.

Definition at line 27 of file stBasicTerrain.h.

Constructor & Destructor Documentation

◆ STBasicTerrain()

STBasicTerrain::STBasicTerrain ( const STBasicTerrain copy)

Not sure whether any derived classes will implement the copy constructor, but it's defined here at the base level just in case.

Definition at line 58 of file stBasicTerrain.cxx.

Member Function Documentation

◆ clear()

void STBasicTerrain::clear ( )
virtual

Resets the terrain to its initial, unloaded state.

Reimplemented from STTerrain.

Definition at line 76 of file stBasicTerrain.cxx.

References STTerrain::clear().

Referenced by setup_terrain().

◆ fill_vertices()

void STBasicTerrain::fill_vertices ( GeomVertexData data,
PN_stdfloat  start_x,
PN_stdfloat  start_y,
PN_stdfloat  size_xy,
int  num_xy
) const
virtual

After load_data() has been called, this will be called occasionally to populate the vertices for a terrain cell.

It will be passed a GeomVertexData whose format will match get_vertex_format(), and already allocated with num_xy * num_xy rows. This method should fill the rows of the data with the appropriate vertex data for the terrain, over the grid described by the corners (start_x, start_y) up to and including (start_x + size_x, start_y + size_xy)–a square of the terrain with num_xy vertices on a size, arranged in row-major order.

Reimplemented from STTerrain.

Definition at line 287 of file stBasicTerrain.cxx.

◆ get_height()

PN_stdfloat STBasicTerrain::get_height ( PN_stdfloat  x,
PN_stdfloat  y
) const
virtual

After load_data() has been called, this should return the computed height value at point (x, y) of the terrain, where x and y are unbounded and may refer to any 2-d point in space.

Implements STTerrain.

Definition at line 250 of file stBasicTerrain.cxx.

◆ get_height_map()

const Filename & STBasicTerrain::get_height_map ( ) const
inline

Returns the image filename that defines the height map of the terrain.

Definition at line 29 of file stBasicTerrain.I.

◆ get_size()

PN_stdfloat STBasicTerrain::get_size ( ) const
inline

Returns the length, in scene graph units, of one edge of the heightmap as it is manifested by the terrain.

Increasing this number spreads the heightmap out over a greater area.

Definition at line 39 of file stBasicTerrain.I.

◆ get_slope()

PN_stdfloat STBasicTerrain::get_slope ( PN_stdfloat  x,
PN_stdfloat  y
) const
virtual

After load_data() has been called, this should return the directionless slope at point (x, y) of the terrain, where 0.0 is flat and 1.0 is vertical.

This is used for determining the legal points to place trees and grass.

Reimplemented from STTerrain.

Definition at line 271 of file stBasicTerrain.cxx.

◆ get_smooth_height()

PN_stdfloat STBasicTerrain::get_smooth_height ( PN_stdfloat  x,
PN_stdfloat  y,
PN_stdfloat  radius
) const
virtual

After load_data() has been called, this should return the approximate average height value over a circle of the specified radius, centered at point (x, y) of the terrain.

Reimplemented from STTerrain.

Definition at line 260 of file stBasicTerrain.cxx.

◆ load_data()

void STBasicTerrain::load_data ( )
virtual

This will be called at some point after initialization.

It should be overridden by a derived class to load up the terrain data from its source and fill in the data members of this class appropriately, especially _is_valid. After this call, if _is_valid is true, then get_height() etc. will be called to query the terrain's data.

Implements STTerrain.

Definition at line 234 of file stBasicTerrain.cxx.

◆ set_height_map()

void STBasicTerrain::set_height_map ( const Filename height_map)
inline

Specifies the image filename that will define the height map of the terrain.

This will require a subsequent call to load_data() to actually read the data.

Definition at line 20 of file stBasicTerrain.I.

◆ setup_terrain() [1/2]

bool STBasicTerrain::setup_terrain ( const Filename terrain_filename)

Sets up the terrain by reading a terrain.txt file as defined by SpeedTree.

This file names the various map files that define the terrain, as well as defining parameters size as its size and color.

If a relative filename is supplied, the model-path is searched. If a directory is named, "terrain.txt" is implicitly appended.

Definition at line 100 of file stBasicTerrain.cxx.

References Filename::get_basename().

◆ setup_terrain() [2/2]

bool STBasicTerrain::setup_terrain ( std::istream &  in,
const Filename pathname
)

Sets up the terrain by reading a terrain.txt file as defined by SpeedTree.

This variant on this method accepts an istream for an already-opened terrain.txt file. The filename is provided for reference, to assist relative file operations. It should name the terrain.txt file that has been opened.

Definition at line 140 of file stBasicTerrain.cxx.

References clear(), and Filename::get_dirname().


The documentation for this class was generated from the following files:
