PhysxShape Class Referenceabstract

Abstract base class for shapes. More...

#include "physxShape.h"

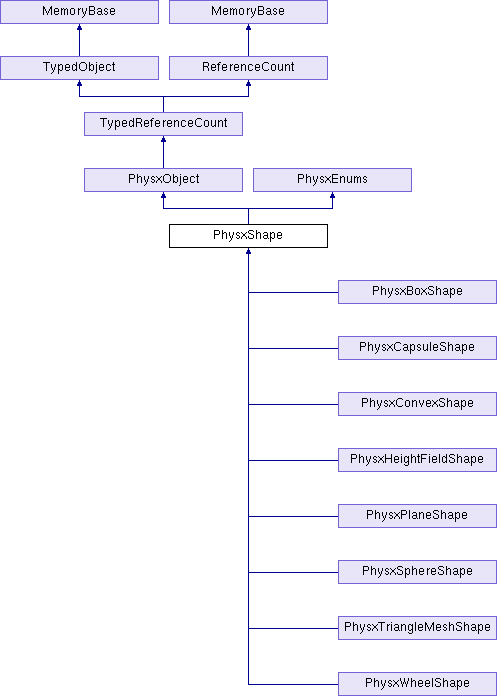

Inheritance diagram for PhysxShape:
PhysxObject PhysxEnums TypedReferenceCount TypedObject ReferenceCount MemoryBase MemoryBase PhysxBoxShape PhysxCapsuleShape PhysxConvexShape PhysxHeightFieldShape PhysxPlaneShape PhysxSphereShape PhysxTriangleMeshShape PhysxWheelShape

Public Member Functions

bool check_overlap_aabb (const PhysxBounds3 &world_bounds) const
 Checks whether the shape overlaps a world-space AABB or not. More...

bool check_overlap_capsule (const PhysxCapsule &world_capsule) const
 Checks whether the shape overlaps a world-space capsule or not. More...

bool check_overlap_obb (const PhysxBox &world_box) const
 Checks whether the shape overlaps a world-space OBB or not. More...

bool check_overlap_sphere (const PhysxSphere &world_sphere) const
 Checks whether the shape overlaps a world-space sphere or not. More...

virtual TypeHandle force_init_type ()

PhysxActorget_actor () const
 Retrieves the actor which this shape is associated with. More...

PhysxCcdSkeletonget_ccd_skeleton () const

bool get_flag (const PhysxShapeFlag flag) const
 Returns the specified shape flag. More...

unsigned short get_group () const
 Retrieves the collision group set for this shape. More...

PhysxGroupsMask get_groups_mask () const
 Gets 128-bit mask used for collision filtering. More...

LMatrix4f get_local_mat () const
 Retrieve the transform of the shape in actor space, i.e. More...

LPoint3f get_local_pos () const
 Retrieve the position of the shape in actor space, i.e. More...

unsigned short get_material_index () const
 Returns the material index currently assigned to the shape. More...

const char * get_name () const
 Returns the name string. More...

float get_skin_width () const
 Returns the skin width. More...

virtual TypeHandle get_type () const

PhysxBounds3 get_world_bounds () const
 Returns a world space AABB enclosing this shape. More...

virtual void link (NxShape *shapePtr)=0

void ls () const

void ls (std::ostream &out, int indent_level=0) const

virtual NxShape * ptr () const =0

PhysxRaycastHit raycast (const PhysxRay &worldRay, bool firstHit, bool smoothNormal) const

void release ()

void set_ccd_skeleton (PhysxCcdSkeleton *skel)

void set_flag (const PhysxShapeFlag flag, bool value)
 Sets the specified shape flag. More...

void set_group (unsigned short group)
 Sets which collision group this shape is part of. More...

void set_groups_mask (const PhysxGroupsMask &mask)
 Sets 128-bit mask used for collision filtering. More...

void set_local_mat (const LMatrix4f &mat)
 Set the transform of the shape in actor space, i.e. More...

void set_local_pos (const LPoint3f &pos)
 Set the position of the shape in actor space, i.e. More...

void set_material (const PhysxMaterial &material)
 Assigns a material to the shape. More...

void set_material_index (unsigned short idx)
 Assigns a material index to the shape. More...

void set_name (const char *name)
 Sets a name string for this object. More...

void set_skin_width (float skinWidth)
 Sets the skin width. More...

virtual void unlink ()=0

- Public Member Functions inherited from TypedReferenceCount
 TypedReferenceCount (const TypedReferenceCount &copy)

void operator= (const TypedReferenceCount &copy)

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...


Static Public Member Functions

static PhysxShapefactory (NxShapeType shapeType)

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from PhysxObject
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()


Additional Inherited Members

- Public Types inherited from PhysxEnums
enum  PhysxActorFlag {
  AF_disable_collision = NX_AF_DISABLE_COLLISION, AF_disable_response = NX_AF_DISABLE_RESPONSE, AF_lock_com = NX_AF_LOCK_COM, AF_fluid_disable_collision = NX_AF_FLUID_DISABLE_COLLISION,
  AF_contact_modification = NX_AF_CONTACT_MODIFICATION, AF_force_cone_friction = NX_AF_FORCE_CONE_FRICTION, AF_user_actor_pair_filtering = NX_AF_USER_ACTOR_PAIR_FILTERING
}

enum  PhysxBodyFlag {
  BF_disable_gravity = NX_BF_DISABLE_GRAVITY, Bf_frozen_pos_x = NX_BF_FROZEN_POS_X, BF_frozen_pos_y = NX_BF_FROZEN_POS_Y, BF_frozen_pos_z = NX_BF_FROZEN_POS_Z,
  BF_frozen_rot_x = NX_BF_FROZEN_ROT_X, BF_frozen_rot_y = NX_BF_FROZEN_ROT_Y, BF_frozen_rot_z = NX_BF_FROZEN_ROT_Z, BF_frozen_pos = NX_BF_FROZEN_POS,
  BF_frozen_rot = NX_BF_FROZEN_ROT, BF_frozen = NX_BF_FROZEN, BF_kinematic = NX_BF_KINEMATIC, BF_visualization = NX_BF_VISUALIZATION,
  BF_filter_sleep_vel = NX_BF_FILTER_SLEEP_VEL, BF_energy_sleep_test = NX_BF_ENERGY_SLEEP_TEST
}

enum  PhysxBroadPhaseType { BPT_sap_single = NX_BP_TYPE_SAP_SINGLE, BPT_sap_multi = NX_BP_TYPE_SAP_MULTI }

enum  PhysxClothFlag {
  CLF_pressure = NX_CLF_PRESSURE, CLF_static = NX_CLF_STATIC, CLF_disable_collision = NX_CLF_DISABLE_COLLISION, CLF_selfcollision = NX_CLF_SELFCOLLISION,
  CLF_visualization = NX_CLF_VISUALIZATION, CLF_gravity = NX_CLF_GRAVITY, CLF_bending = NX_CLF_BENDING, CLF_bending_ortho = NX_CLF_BENDING_ORTHO,
  CLF_damping = NX_CLF_DAMPING, CLF_collision_twoway = NX_CLF_COLLISION_TWOWAY, CLF_triangle_collision = NX_CLF_TRIANGLE_COLLISION, CLF_tearable = NX_CLF_TEARABLE,
  CLF_hardware = NX_CLF_HARDWARE, CLF_comdamping = NX_CLF_COMDAMPING, CLF_validbounds = NX_CLF_VALIDBOUNDS, CLF_fluid_collision = NX_CLF_FLUID_COLLISION,
  CLF_disable_dynamic_ccd = NX_CLF_DISABLE_DYNAMIC_CCD, CLF_adhere = NX_CLF_ADHERE
}

enum  PhysxCombineMode { CM_average = NX_CM_AVERAGE, CM_min = NX_CM_MIN, CM_multiply = NX_CM_MULTIPLY, CM_max = NX_CM_MAX }

enum  PhysxContactPairFlag {
  CPF_ignore_pair = NX_IGNORE_PAIR, CPF_notify_on_start_touch = NX_NOTIFY_ON_START_TOUCH, CPF_notify_on_end_touch = NX_NOTIFY_ON_END_TOUCH, CPF_notify_on_touch = NX_NOTIFY_ON_TOUCH,
  CPF_notify_on_impact = NX_NOTIFY_ON_IMPACT, CPF_notify_on_roll = NX_NOTIFY_ON_ROLL, CPF_notify_on_slide = NX_NOTIFY_ON_SLIDE, CPF_notify_forces = NX_NOTIFY_FORCES,
  CPF_notify_on_start_touch_threshold = NX_NOTIFY_ON_START_TOUCH_FORCE_THRESHOLD, CPF_notify_on_end_touch_threshold = NX_NOTIFY_ON_END_TOUCH_FORCE_THRESHOLD, CPF_notify_on_touch_threshold = NX_NOTIFY_ON_TOUCH_FORCE_THRESHOLD, CPF_notify_contact_modifications = NX_NOTIFY_CONTACT_MODIFICATION
}

enum  PhysxD6JointDriveType { D6_joint_drive_position = NX_D6JOINT_DRIVE_POSITION, D6_joint_drive_velocity = NX_D6JOINT_DRIVE_VELOCITY }

enum  PhysxD6JointFlag { D6_joint_slerp_drive = NX_D6JOINT_SLERP_DRIVE, D6_joint_gear_disabled = NX_D6JOINT_GEAR_ENABLED }

enum  PhysxD6JointMotion { D6_joint_motion_locked = NX_D6JOINT_MOTION_LOCKED, D6_joint_motion_limited = NX_D6JOINT_MOTION_LIMITED, D6_joint_motion_free = NX_D6JOINT_MOTION_FREE }

enum  PhysxDistanceJointFlag { DJF_max_distance_enabled = NX_DJF_MAX_DISTANCE_ENABLED, DJF_mix_distance_enabled = NX_DJF_MIN_DISTANCE_ENABLED, DJF_spring_enabled = NX_DJF_SPRING_ENABLED }

enum  PhysxFilterOp {
  FO_and = NX_FILTEROP_AND, FO_or = NX_FILTEROP_OR, FO_xor = NX_FILTEROP_XOR, FO_nand = NX_FILTEROP_NAND,
  FO_nor = NX_FILTEROP_NOR, FO_nxor = NX_FILTEROP_NXOR, FO_swap_and = NX_FILTEROP_SWAP_AND
}

enum  PhysxForceFieldCoordinates { FFC_cartesian, FFC_spherical, FFC_cylindrical, FFC_toroidal }

enum  PhysxForceFieldShapeGroupFlag { FFSG_exclude_group = NX_FFSG_EXCLUDE_GROUP }

enum  PhysxForceMode {
  FM_force = NX_FORCE, FM_impulse = NX_IMPULSE, FM_velocity_change = NX_VELOCITY_CHANGE, FM_smooth_impulse = NX_SMOOTH_IMPULSE,
  FM_smooth_velocity_change = NX_SMOOTH_VELOCITY_CHANGE, FM_acceleration = NX_ACCELERATION
}

enum  PhysxJointFlag { JF_collision_enabled = NX_JF_COLLISION_ENABLED, JF_visualization = NX_JF_VISUALIZATION }

enum  PhysxMaterialFlag { MF_anisotropic = NX_MF_ANISOTROPIC, MF_disable_friction = NX_MF_DISABLE_FRICTION, MF_disable_strong_friction = NX_MF_DISABLE_STRONG_FRICTION }

enum  PhysxParameter {
  P_penalty_force = NX_PENALTY_FORCE, P_skin_width = NX_SKIN_WIDTH, P_default_sleep_lin_vel_squared = NX_DEFAULT_SLEEP_LIN_VEL_SQUARED, P_default_sleep_ang_vel_squared = NX_DEFAULT_SLEEP_ANG_VEL_SQUARED,
  P_bounce_threshold = NX_BOUNCE_THRESHOLD, P_dyn_frict_scaling = NX_DYN_FRICT_SCALING, P_sta_frict_scaling = NX_STA_FRICT_SCALING, P_max_angular_velocity = NX_MAX_ANGULAR_VELOCITY,
  P_continuous_cd = NX_CONTINUOUS_CD, P_visualization_scale = NX_VISUALIZATION_SCALE, P_adaptive_force = NX_ADAPTIVE_FORCE, P_coll_veta_jointed = NX_COLL_VETO_JOINTED,
  P_trigger_trigger_callback = NX_TRIGGER_TRIGGER_CALLBACK, P_select_hw_algo = NX_SELECT_HW_ALGO, P_ccd_epsilon = NX_CCD_EPSILON, P_solver_convergence_threshold = NX_SOLVER_CONVERGENCE_THRESHOLD,
  P_bbox_noise_level = NX_BBOX_NOISE_LEVEL, P_implicit_sweep_cache_size = NX_IMPLICIT_SWEEP_CACHE_SIZE, P_default_sleep_energy = NX_DEFAULT_SLEEP_ENERGY, P_constant_fluid_max_packets = NX_CONSTANT_FLUID_MAX_PACKETS,
  P_constant_fluid_max_particles_per_step = NX_CONSTANT_FLUID_MAX_PARTICLES_PER_STEP, P_asynchronous_mesh_creation = NX_ASYNCHRONOUS_MESH_CREATION, P_force_field_custom_kernel_epsilon = NX_FORCE_FIELD_CUSTOM_KERNEL_EPSILON, P_improved_spring_solver = NX_IMPROVED_SPRING_SOLVER,
  P_visualize_world_axes = NX_VISUALIZE_WORLD_AXES, P_visualize_body_axes = NX_VISUALIZE_BODY_AXES, P_visualize_body_mass_axes = NX_VISUALIZE_BODY_MASS_AXES, P_visualize_body_lin_velocity = NX_VISUALIZE_BODY_LIN_VELOCITY,
  P_visualize_body_ang_velocity = NX_VISUALIZE_BODY_ANG_VELOCITY, P_visualize_body_joint_groups = NX_VISUALIZE_BODY_JOINT_GROUPS, P_visualize_joint_local_axes = NX_VISUALIZE_JOINT_LOCAL_AXES, P_visualize_joint_world_axes = NX_VISUALIZE_JOINT_WORLD_AXES,
  P_visualize_joint_limits = NX_VISUALIZE_JOINT_LIMITS, P_visualize_contact_point = NX_VISUALIZE_CONTACT_POINT, P_visualize_contact_normal = NX_VISUALIZE_CONTACT_NORMAL, P_visualize_contact_error = NX_VISUALIZE_CONTACT_ERROR,
  P_visualize_contact_force = NX_VISUALIZE_CONTACT_FORCE, P_visualize_actor_axes = NX_VISUALIZE_ACTOR_AXES, P_visualize_collision_aabbs = NX_VISUALIZE_COLLISION_AABBS, P_visualize_collision_shapes = NX_VISUALIZE_COLLISION_SHAPES,
  P_visualize_collision_axes = NX_VISUALIZE_COLLISION_AXES, P_visualize_collision_compounds = NX_VISUALIZE_COLLISION_COMPOUNDS, P_visualize_collision_vnormals = NX_VISUALIZE_COLLISION_VNORMALS, P_visualize_collision_fnormals = NX_VISUALIZE_COLLISION_FNORMALS,
  P_visualize_collision_edges = NX_VISUALIZE_COLLISION_EDGES, P_visualize_collision_spheres = NX_VISUALIZE_COLLISION_SPHERES, P_visualize_collision_static = NX_VISUALIZE_COLLISION_STATIC, P_visualize_collision_dynamic = NX_VISUALIZE_COLLISION_DYNAMIC,
  P_visualize_collision_free = NX_VISUALIZE_COLLISION_FREE, P_visualize_collision_ccd = NX_VISUALIZE_COLLISION_CCD, P_visualize_collision_skeletons = NX_VISUALIZE_COLLISION_SKELETONS, P_visualize_fluid_emitters = NX_VISUALIZE_FLUID_EMITTERS,
  P_visualize_fluid_position = NX_VISUALIZE_FLUID_POSITION, P_visualize_fluid_velocity = NX_VISUALIZE_FLUID_VELOCITY, P_visualize_fluid_kernel_radius = NX_VISUALIZE_FLUID_KERNEL_RADIUS, P_visualize_fluid_bounds = NX_VISUALIZE_FLUID_BOUNDS,
  P_visualize_fluid_packets = NX_VISUALIZE_FLUID_PACKETS, P_visualize_fluid_motion_limit = NX_VISUALIZE_FLUID_MOTION_LIMIT, P_visualize_fluid_dyn_collision = NX_VISUALIZE_FLUID_DYN_COLLISION, P_visualize_fluid_stc_collision = NX_VISUALIZE_FLUID_STC_COLLISION,
  P_visualize_fluid_mesh_packets = NX_VISUALIZE_FLUID_MESH_PACKETS, P_visualize_fluid_drains = NX_VISUALIZE_FLUID_DRAINS, P_visualize_fluid_packet_data = NX_VISUALIZE_FLUID_PACKET_DATA, P_visualize_cloth_mesh = NX_VISUALIZE_CLOTH_MESH,
  P_visualize_cloth_collisions = NX_VISUALIZE_CLOTH_COLLISIONS, P_visualize_cloth_selfcollisions = NX_VISUALIZE_CLOTH_SELFCOLLISIONS, P_visualize_cloth_workpackets = NX_VISUALIZE_CLOTH_WORKPACKETS, P_visualize_cloth_sleep = NX_VISUALIZE_CLOTH_SLEEP,
  P_visualize_cloth_sleep_vertex = NX_VISUALIZE_CLOTH_SLEEP_VERTEX, P_visualize_cloth_tearable_vertices = NX_VISUALIZE_CLOTH_TEARABLE_VERTICES, P_visualize_cloth_tearing = NX_VISUALIZE_CLOTH_TEARING, P_visualize_cloth_attachment = NX_VISUALIZE_CLOTH_ATTACHMENT,
  P_visualize_cloth_validbounds = NX_VISUALIZE_CLOTH_VALIDBOUNDS, P_visualize_softbody_mesh = NX_VISUALIZE_SOFTBODY_MESH, P_visualize_softbody_collisions = NX_VISUALIZE_SOFTBODY_COLLISIONS, P_visualize_softbody_workpackets = NX_VISUALIZE_SOFTBODY_WORKPACKETS,
  P_visualize_softbody_sleep = NX_VISUALIZE_SOFTBODY_SLEEP, P_visualize_softbody_sleep_vertex = NX_VISUALIZE_SOFTBODY_SLEEP_VERTEX, P_visualize_softbody_tearable_vertices = NX_VISUALIZE_SOFTBODY_TEARABLE_VERTICES, P_visualize_softbody_tearing = NX_VISUALIZE_SOFTBODY_TEARING,
  P_visualize_softbody_attachment = NX_VISUALIZE_SOFTBODY_ATTACHMENT, P_visualize_softbody_validbounds = NX_VISUALIZE_SOFTBODY_VALIDBOUNDS, P_visualize_active_vertices = NX_VISUALIZE_ACTIVE_VERTICES, P_visualize_force_fields = NX_VISUALIZE_FORCE_FIELDS
}

enum  PhysxProjectionMode { PM_none = NX_JPM_NONE, PM_point_mindist = NX_JPM_POINT_MINDIST, PM_linear_mindist = NX_JPM_LINEAR_MINDIST }

enum  PhysxPruningStructure {
  PS_none = NX_PRUNING_NONE, PS_octree = NX_PRUNING_OCTREE, PS_quadtree = NX_PRUNING_QUADTREE, PS_dynamic_aabb_tree = NX_PRUNING_DYNAMIC_AABB_TREE,
  PS_static_aabb_tree = NX_PRUNING_STATIC_AABB_TREE
}

enum  PhysxPulleyJointFlag { PJF_is_rigid = NX_PJF_IS_RIGID, PJF_motor_enabled = NX_PJF_MOTOR_ENABLED }

enum  PhysxRevoluteJointFlag { RJF_limit_enabled = NX_RJF_LIMIT_ENABLED, RJF_motor_enabled = NX_RJF_MOTOR_ENABLED, RJF_spring_enabled = NX_RJF_SPRING_ENABLED }

enum  PhysxSceneFlag {
  SF_disable_sse = NX_SF_DISABLE_SSE, SF_disable_collisions = NX_SF_DISABLE_COLLISIONS, SF_restricted_scene = NX_SF_RESTRICTED_SCENE, SF_disable_scene_mutex = NX_SF_DISABLE_SCENE_MUTEX,
  SF_force_cone_friction = NX_SF_FORCE_CONE_FRICTION, SF_sequential_primary = NX_SF_SEQUENTIAL_PRIMARY, SF_fluid_performance_hint = NX_SF_FLUID_PERFORMANCE_HINT
}

enum  PhysxShapeFlag {
  SF_trigger_on_enter = NX_TRIGGER_ON_ENTER, SF_trigger_on_leave = NX_TRIGGER_ON_LEAVE, SF_trigger_on_stay = NX_TRIGGER_ON_STAY, SF_trigger_enable = NX_TRIGGER_ENABLE,
  SF_visualization = NX_SF_VISUALIZATION, SF_disable_collision = NX_SF_DISABLE_COLLISION, SF_disable_raycasting = NX_SF_DISABLE_RAYCASTING, SF_disable_response = NX_SF_DISABLE_RESPONSE,
  SF_disable_scene_queries = NX_SF_DISABLE_SCENE_QUERIES, SF_point_contact_force = NX_SF_POINT_CONTACT_FORCE, SF_feature_indices = NX_SF_FEATURE_INDICES, SF_dynamic_dynamic_ccd = NX_SF_DYNAMIC_DYNAMIC_CCD,
  SF_fluid_drain = NX_SF_FLUID_DRAIN, SF_fluid_disable_collision = NX_SF_FLUID_DISABLE_COLLISION, SF_fluid_twoway = NX_SF_FLUID_TWOWAY, SF_cloth_drain = NX_SF_CLOTH_DRAIN,
  SF_cloth_disable_collision = NX_SF_CLOTH_DISABLE_COLLISION, SF_cloth_twoway = NX_SF_CLOTH_TWOWAY, SF_softbody_drain = NX_SF_SOFTBODY_DRAIN, SF_softbody_disable_collision = NX_SF_SOFTBODY_DISABLE_COLLISION,
  SF_softbody_twoway = NX_SF_SOFTBODY_TWOWAY
}

enum  PhysxShapesType { ST_static = NX_STATIC_SHAPES, ST_dynamic = NX_DYNAMIC_SHAPES, ST_all = NX_ALL_SHAPES }

enum  PhysxSoftBodyFlag {
  SBF_static = NX_SBF_STATIC, SBF_disable_collision = NX_SBF_DISABLE_COLLISION, SBF_selfcollision = NX_SBF_SELFCOLLISION, SBF_visualization = NX_SBF_VISUALIZATION,
  SBF_gravity = NX_SBF_GRAVITY, SBF_volume_conservtion = NX_SBF_VOLUME_CONSERVATION, SBF_damping = NX_SBF_DAMPING, SBF_collision_twoway = NX_SBF_COLLISION_TWOWAY,
  SBF_tearable = NX_SBF_TEARABLE, SBF_hardware = NX_SBF_HARDWARE, SBF_comdamping = NX_SBF_COMDAMPING, SBF_validbounds = NX_SBF_VALIDBOUNDS,
  SBF_fluid_collision = NX_SBF_FLUID_COLLISION, SBF_disable_dynamic_ccd = NX_SBF_DISABLE_DYNAMIC_CCD, SBF_adhere = NX_SBF_ADHERE
}

enum  PhysxSphericalJointFlag {
  SJF_twist_limit_enabled = NX_SJF_TWIST_LIMIT_ENABLED, SJF_swing_limit_enabled = NX_SJF_SWING_LIMIT_ENABLED, SJF_twist_spring_enabled = NX_SJF_TWIST_SPRING_ENABLED, SJF_swing_spring_enabled = NX_SJF_SWING_SPRING_ENABLED,
  SJF_joint_spring_enabled = NX_SJF_JOINT_SPRING_ENABLED, SJF_perpendicular_dir_constraints = NX_SJF_PERPENDICULAR_DIR_CONSTRAINTS
}

enum  PhysxUpAxis { X_up = NX_X, Y_up = NX_Y, Z_up = NX_Z }

enum  PhysxVertexAttachmentStatus { VAS_none = NX_CLOTH_VERTEX_ATTACHMENT_NONE, VAS_global = NX_CLOTH_VERTEX_ATTACHMENT_GLOBAL, VAS_shape = NX_CLOTH_VERTEX_ATTACHMENT_SHAPE }

enum  PhysxWheelFlag { WF_steerable_input = 1<<0, WF_steerable_auto = 1<<1, WF_affected_by_handbrake = 1<<2, WF_accelerated = 1<<3 }

enum  PhysxWheelShapeFlag {
  WSF_wheel_axis_contact_normal = NX_WF_WHEEL_AXIS_CONTACT_NORMAL, WSF_input_lat_slipvelocity = NX_WF_INPUT_LAT_SLIPVELOCITY, WSF_input_lng_slipvelocity = NX_WF_INPUT_LNG_SLIPVELOCITY, WSF_unscaled_spring_behavior = NX_WF_UNSCALED_SPRING_BEHAVIOR,
  WSF_axle_speed_override = NX_WF_AXLE_SPEED_OVERRIDE, WSF_emulate_legacy_wheel = NX_WF_EMULATE_LEGACY_WHEEL, WSF_clamped_friction = NX_WF_CLAMPED_FRICTION
}

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...


Detailed Description

Abstract base class for shapes.

Definition at line 39 of file physxShape.h.

Member Function Documentation

◆ check_overlap_aabb()

bool PhysxShape::check_overlap_aabb ( const PhysxBounds3 world_bounds) const

Checks whether the shape overlaps a world-space AABB or not.

Definition at line 334 of file physxShape.cxx.

◆ check_overlap_capsule()

bool PhysxShape::check_overlap_capsule ( const PhysxCapsule world_capsule) const

Checks whether the shape overlaps a world-space capsule or not.

Definition at line 344 of file physxShape.cxx.

◆ check_overlap_obb()

bool PhysxShape::check_overlap_obb ( const PhysxBox world_box) const

Checks whether the shape overlaps a world-space OBB or not.

Definition at line 354 of file physxShape.cxx.

◆ check_overlap_sphere()

bool PhysxShape::check_overlap_sphere ( const PhysxSphere world_sphere) const

Checks whether the shape overlaps a world-space sphere or not.

Definition at line 364 of file physxShape.cxx.

◆ get_actor()

PhysxActor * PhysxShape::get_actor ( ) const

Retrieves the actor which this shape is associated with.

Definition at line 89 of file physxShape.cxx.

◆ get_flag()

bool PhysxShape::get_flag ( const PhysxShapeFlag  flag) const

Returns the specified shape flag.

Definition at line 141 of file physxShape.cxx.

◆ get_group()

unsigned short PhysxShape::get_group ( ) const

Retrieves the collision group set for this shape.

The collision group is an integer between 0 and 31.

Definition at line 192 of file physxShape.cxx.

◆ get_groups_mask()

PhysxGroupsMask PhysxShape::get_groups_mask ( ) const

Gets 128-bit mask used for collision filtering.

Definition at line 310 of file physxShape.cxx.

◆ get_local_mat()

LMatrix4f PhysxShape::get_local_mat ( ) const

Retrieve the transform of the shape in actor space, i.e.

relative to the actor it is owned by.

Definition at line 252 of file physxShape.cxx.

◆ get_local_pos()

LPoint3f PhysxShape::get_local_pos ( ) const

Retrieve the position of the shape in actor space, i.e.

relative to the actor it is owned by.

Definition at line 222 of file physxShape.cxx.

◆ get_material_index()

unsigned short PhysxShape::get_material_index ( ) const

Returns the material index currently assigned to the shape.

Definition at line 263 of file physxShape.cxx.

◆ get_name()

const char * PhysxShape::get_name ( ) const

Returns the name string.

Definition at line 112 of file physxShape.cxx.

◆ get_skin_width()

float PhysxShape::get_skin_width ( ) const

Returns the skin width.

Definition at line 164 of file physxShape.cxx.

◆ get_world_bounds()

PhysxBounds3 PhysxShape::get_world_bounds ( ) const

Returns a world space AABB enclosing this shape.

Definition at line 322 of file physxShape.cxx.

◆ set_flag()

void PhysxShape::set_flag ( const PhysxShapeFlag  flag,
bool  value
)

Sets the specified shape flag.

The shape may be turned into a trigger by setting one or more of the TriggerFlags to true. A trigger shape will not collide with other shapes. Instead, if a shape enters the trigger's volume, a trigger event will be sent. Trigger events can be listened to by DirectObjects.

The following trigger events can be sent: - physx-trigger-enter - physx- trigger-stay - physx-trigger-leave

Definition at line 130 of file physxShape.cxx.

◆ set_group()

void PhysxShape::set_group ( unsigned short  group)

Sets which collision group this shape is part of.

Default group is 0. Maximum possible group is 31. Collision groups are sets of shapes which may or may not be set to collision detect with each other; this can be set using PhysxScene::set_group_collision_flag().

Definition at line 179 of file physxShape.cxx.

◆ set_groups_mask()

void PhysxShape::set_groups_mask ( const PhysxGroupsMask mask)

Sets 128-bit mask used for collision filtering.

Does NOT wake the associated actor up automatically.

Definition at line 300 of file physxShape.cxx.

◆ set_local_mat()

void PhysxShape::set_local_mat ( const LMatrix4f &  mat)

Set the transform of the shape in actor space, i.e.

relative to the actor it is owned by.

Calling this method does NOT wake the associated actor up automatically.

Calling this method does not automatically update the inertia properties of the owning actor (if applicable); use PhysxActor::update_mass_from_shapes() to do this.

Definition at line 240 of file physxShape.cxx.

◆ set_local_pos()

void PhysxShape::set_local_pos ( const LPoint3f &  pos)

Set the position of the shape in actor space, i.e.

relative to the actor it is owned by.

Calling this method does NOT wake the associated actor up automatically.

Calling this method does not automatically update the inertia properties of the owning actor (if applicable); use PhysxActor::update_mass_from_shapes() to do this.

Definition at line 210 of file physxShape.cxx.

◆ set_material()

void PhysxShape::set_material ( const PhysxMaterial material)

Assigns a material to the shape.

Definition at line 274 of file physxShape.cxx.

◆ set_material_index()

void PhysxShape::set_material_index ( unsigned short  index)

Assigns a material index to the shape.

The material index can be retrieved by calling PhysxMaterial::get_material_index(). If the material index is invalid, it will still be recorded, but the default material (at index 0) will effectively be used for simulation.

Definition at line 289 of file physxShape.cxx.

◆ set_name()

void PhysxShape::set_name ( const char *  name)

Sets a name string for this object.

The name can be retrieved again with get_name(). This is for debugging and is not used by the physics engine.

Definition at line 100 of file physxShape.cxx.

◆ set_skin_width()

void PhysxShape::set_skin_width ( float  skinWidth)

Sets the skin width.

The skin width must be non-negative.

Definition at line 152 of file physxShape.cxx.


The documentation for this class was generated from the following files:
