ClientDialDevice Class Reference

A device, attached to the ClientBase by a DialNode, that records the data from a single named dial device. More...

#include "clientDialDevice.h"

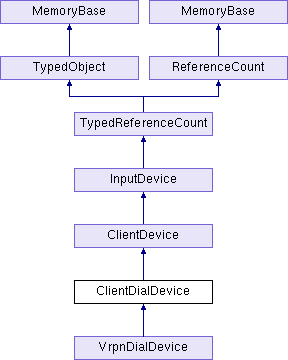

Inheritance diagram for ClientDialDevice:
ClientDevice InputDevice TypedReferenceCount TypedObject ReferenceCount MemoryBase MemoryBase VrpnDialDevice

Public Member Functions

virtual TypeHandle force_init_type ()

int get_num_dials () const
 Returns the number of dial dials known to the ClientDialDevice. More...

virtual TypeHandle get_type () const

bool is_dial_known (int index) const
 Returns true if the state of the indicated dial dial is known, or false if we have never heard anything about this particular dial. More...

void push_dial (int index, double offset)
 Marks that the dial has been offset by the indicated amount. More...

double read_dial (int index)
 Returns the number of complete revolutions of the dial since the last time read_dial() was called. More...

- Public Member Functions inherited from ClientDevice
virtual ~ClientDevice ()
 We don't actually call disconnect() at the ClientDevice level destructor, because by the time we get here we're already partly destructed. More...

void disconnect ()
 Disconnects the ClientDevice from its ClientBase object. More...

virtual void do_poll () final
 Causes the connected ClientBase to poll all of its clients, if necessary. More...

ClientBaseget_client () const
 Returns the ClientBase this device is associated with. More...

TypeHandle get_device_type () const
 Returns the type of device this is considered to be to the ClientBase: a ClientTrackerDevice, ClientAnalogDevice, or what have you. More...

virtual void output (std::ostream &out) const
 Writes a one-line string describing the device. More...

virtual void write (std::ostream &out, int indent_level=0) const

- Public Member Functions inherited from InputDevice
 InputDevice (const InputDevice &copy)=delete

void disable_pointer_events ()
 Disables the generation of mouse-movement events. More...

void enable_pointer_events ()
 Enables the generation of mouse-movement events. More...

AxisState find_axis (Axis axis) const
 Returns the first AnalogAxis found with the given axis, or throw an assert if the axis was not found in the list. More...

ButtonState find_button (ButtonHandle handle) const
 Returns the first ButtonState found with the given axis, or throw an assert if the button handle was not found in the list. More...

AxisState get_axis (size_t index) const

double get_axis_value (size_t index) const
 Returns the current position of indicated analog axis (identified by its index number), or 0.0 if the axis is unknown. More...

BatteryData get_battery () const

ButtonState get_button (size_t index) const

ButtonHandle get_button_map (size_t index) const
 Returns the ButtonHandle that was previously associated with the given index number by a call to map_button(), or ButtonHandle::none() if no button was associated. More...

DeviceClass get_device_class () const

std::string get_manufacturer () const

std::string get_name () const

size_t get_num_axes () const

size_t get_num_buttons () const

unsigned short get_product_id () const

std::string get_serial_number () const

TrackerData get_tracker () const

unsigned short get_vendor_id () const

bool has_battery () const

bool has_button_event () const
 Returns true if this device has a pending button event (a mouse button or keyboard button down/up), false otherwise. More...

bool has_feature (Feature feature) const
 Returns true if the device supports the indicated feature. More...

bool has_keyboard () const
 Returns true if the device has a physical keyboard designed for text entry. More...

bool has_pointer () const
 Returns true if this is a pointing device. More...

bool has_pointer_event () const
 Returns true if this device has a pending pointer event (a mouse movement), or false otherwise. More...

bool has_tracker () const

bool has_vibration () const
 Returns true if the device has vibration motors that can be controlled by calling set_vibration(). More...

bool is_axis_known (size_t index) const
 Returns true if the state of the indicated analog axis is known, or false if we have never heard anything about this particular axis. More...

bool is_button_known (size_t index) const
 Returns true if the state of the indicated button is known, or false if we have never heard anything about this particular button. More...

bool is_button_pressed (size_t index) const
 Returns true if the indicated button (identified by its index number) is currently known to be down, or false if it is up or unknown. More...

bool is_connected () const

void map_axis (size_t index, Axis axis)
 Associates the indicated Axis with the axis of the indicated index number. More...

void map_button (size_t index, ButtonHandle handle)
 Associates the indicated ButtonHandle with the button of the indicated index number. More...

InputDeviceoperator= (const InputDevice &copy)=delete

void output_buttons (std::ostream &out) const
 Writes a one-line string of all of the current button states. More...

void poll ()
 Polls the input device for new activity, to ensure it contains the latest events. More...

 PT (ButtonEventList) get_button_events()

 PT (PointerEventList) get_pointer_events()

void set_connected (bool connected)
 Called to indicate that the device has been disconnected or connected from its host. More...

void set_vibration (double strong, double weak)
 Sets the strength of the vibration effect, if supported. More...

void write_axes (std::ostream &out, int indent_level) const
 Writes a multi-line description of the current analog axis states. More...

void write_buttons (std::ostream &out, int indent_level) const
 Writes a multi-line description of the current button states. More...

- Public Member Functions inherited from TypedReferenceCount
 TypedReferenceCount (const TypedReferenceCount &copy)

void operator= (const TypedReferenceCount &copy)

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from ClientDevice
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from InputDevice
static std::string format_axis (Axis axis)
 Returns a string describing the given axis enumerant. More...

static std::string format_device_class (DeviceClass dc)
 Returns a string describing the given device class enumerant. More...

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()


Additional Inherited Members

- Public Types inherited from InputDevice
typedef pvector< AxisStateAxes

enum  Axis {
  none, x, y, z,
  yaw, pitch, roll, left_x,
  left_y, left_trigger, right_x, right_y,
  right_trigger, throttle, rudder, wheel,
  accelerator, brake
}

typedef pvector< ButtonStateButtons

enum  DeviceClass {
  unknown, virtual_device, keyboard, mouse,
  touch, gamepad, flight_stick, steering_wheel,
  dance_pad, hmd, spatial_mouse
}

enum  Feature {
  pointer, keyboard, tracker, vibration,
  battery
}

enum  State { S_unknown, S_up, S_down }

- Public Attributes inherited from InputDevice
Axes _axes

BatteryData _battery_data

Buttons _buttons

PointerData _pointer_data

TrackerData _tracker_data

 get_axis
 Returns the axis state that is set at the given index, or throw an assert if the index was not found in the list. More...

 get_battery
 Returns a rough indication of the battery level, ranging from 0 (completely empty battery) to the indicated max_level value. More...

 get_button
 Returns the ButtonState that is set at the given index, or throw an assert if the index was not found in the list. More...

 get_device_class
 Returns an identification of the general type of device. More...

 get_manufacturer
 Returns a string containing the manufacturer of the device, if this information is known. More...

 get_name
 Returns a human-readable name for the device. More...

 get_num_axes
 Returns the number of analog axes known to the InputDevice. More...

 get_num_buttons
 Returns the number of buttons known to the device. More...

 get_product_id
 Returns a string containing the USB product ID of the device, if this information is known. More...

 get_serial_number
 Returns a string containing the serial number of the device, if this information is known. More...

 get_tracker
 Returns the TrackerData associated with the input device's tracker. More...

 get_vendor_id
 Returns a string containing the USB vendor ID of the device, if this information is known. More...

 has_battery
 Returns true if the device may be able to provide information about its battery life. More...

 has_tracker
 Returns true if the device features a tracker that can track position and/or orientation in 3D space. More...

 is_connected
 Returns true if the device is still connected and able to receive data, false otherwise. More...

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...


Detailed Description

A device, attached to the ClientBase by a DialNode, that records the data from a single named dial device.

The named device can contain any number of dials, numbered in sequence beginning at zero.

A dial is a rotating device that does not have stops–it can keep rotating any number of times. Therefore it does not have a specific position at any given time, unlike an AnalogDevice.

Definition at line 30 of file clientDialDevice.h.

Member Function Documentation

◆ get_num_dials()

int ClientDialDevice::get_num_dials ( ) const
inline

Returns the number of dial dials known to the ClientDialDevice.

This number may change as more dials are discovered.

Definition at line 38 of file clientDialDevice.I.

◆ is_dial_known()

bool ClientDialDevice::is_dial_known ( int  index) const
inline

Returns true if the state of the indicated dial dial is known, or false if we have never heard anything about this particular dial.

Definition at line 79 of file clientDialDevice.I.

◆ push_dial()

void ClientDialDevice::push_dial ( int  index,
double  offset
)
inline

Marks that the dial has been offset by the indicated amount.

It is the user's responsibility to ensure that this call is protected within acquire().

Definition at line 48 of file clientDialDevice.I.

◆ read_dial()

double ClientDialDevice::read_dial ( int  index)
inline

Returns the number of complete revolutions of the dial since the last time read_dial() was called.

This is a destructive operation; it is not possible to read the dial without resetting the counter.

It is the user's responsibility to ensure that this call is protected within acquire().

Definition at line 64 of file clientDialDevice.I.


The documentation for this class was generated from the following files:
