DXVertexBufferContext9 Class Reference

Caches a GeomVertexArrayData in the DirectX device as a vertex buffer. More...

#include "dxVertexBufferContext9.h"

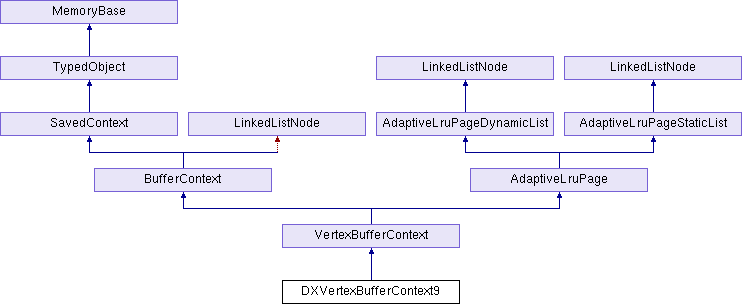

Inheritance diagram for DXVertexBufferContext9:
VertexBufferContext BufferContext AdaptiveLruPage SavedContext LinkedListNode AdaptiveLruPageDynamicList AdaptiveLruPageStaticList TypedObject LinkedListNode LinkedListNode MemoryBase

Public Member Functions

 DXVertexBufferContext9 (DXGraphicsStateGuardian9 *dxgsg, PreparedGraphicsObjects *pgo, GeomVertexArrayData *data)

virtual void evict_lru ()
 Evicts the page from the LRU. More...

virtual TypeHandle force_init_type ()

virtual TypeHandle get_type () const

- Public Member Functions inherited from VertexBufferContext
 VertexBufferContext (PreparedGraphicsObjects *pgo, GeomVertexArrayData *data)

bool changed_size (const GeomVertexArrayDataHandle *reader) const
 Returns true if the data has changed size since the last time mark_loaded() was called. More...

bool changed_usage_hint (const GeomVertexArrayDataHandle *reader) const
 Returns true if the data has changed its usage hint since the last time mark_loaded() was called. More...

GeomVertexArrayDataget_data () const
 Returns the pointer to the client-side array data object. More...

void mark_loaded (const GeomVertexArrayDataHandle *reader)
 Should be called after the VertexBufferContext has been loaded into graphics memory, this updates the internal flags for changed_size() and modified(). More...

void mark_unloaded ()
 Should be called after the buffer has been forced out of graphics memory. More...

virtual void output (std::ostream &out) const

void update_data_size_bytes (size_t new_data_size_bytes)
 Should be called (usually by a derived class) when the on-card size of this object has changed. More...

bool was_modified (const GeomVertexArrayDataHandle *reader) const
 Returns true if the data has been modified since the last time mark_loaded() was called. More...

virtual void write (std::ostream &out, int indent_level) const

- Public Member Functions inherited from BufferContext
 BufferContext (BufferResidencyTracker *residency, TypedWritableReferenceCount *object)

bool get_active () const

size_t get_data_size_bytes () const

UpdateSeq get_modified () const

BufferContextget_next () const
 This can be used along with BufferContextChain::get_first() to walk through the list of objects stored on a tracker. More...

TypedWritableReferenceCountget_object () const

bool get_resident () const

void set_active (bool flag)
 Changes the active flag associated with this object. More...

void set_resident (bool flag)
 Changes the resident flag associated with this object. More...

void update_data_size_bytes (size_t new_data_size_bytes)
 Should be called (usually by a derived class) when the on-card size of this object has changed. More...

void update_modified (UpdateSeq new_modified)
 Should be called (usually by a derived class) when the modified counter for this object has changed. More...

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from AdaptiveLruPage
 AdaptiveLruPage (size_t lru_size)

 AdaptiveLruPage (const AdaptiveLruPage &copy)

void dequeue_lru ()
 Removes the page from its AdaptiveLru. More...

void enqueue_lru (AdaptiveLru *lru)
 Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added. More...

AdaptiveLruget_lru () const
 Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU. More...

size_t get_lru_size () const
 Returns the size of this page as reported to the LRU, presumably in bytes. More...

unsigned int get_num_frames () const
 Returns the number of frames since the page was first added to its LRU. More...

unsigned int get_num_inactive_frames () const
 Returns the number of frames since the page was last accessed on its LRU. More...

void mark_used_lru () const
 To be called when the page is used; this will move it to the tail of the AdaptiveLru queue it is already on. More...

void mark_used_lru (AdaptiveLru *lru)
 To be called when the page is used; this will move it to the tail of the specified AdaptiveLru queue. More...

void operator= (const AdaptiveLruPage &copy)

void set_lru_size (size_t lru_size)
 Specifies the size of this page, presumably in bytes, although any unit is possible. More...


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from VertexBufferContext
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from BufferContext
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from SavedContext
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...


Public Attributes

int _fvf

LPDIRECT3DVERTEXBUFFER9 _vbuffer

- Public Attributes inherited from BufferContext
 get_active
 Returns the active flag associated with this object. More...

 get_data_size_bytes
 Returns the number of bytes previously reported for the data object. More...

 get_modified
 Returns the UpdateSeq that was recorded the last time mark_loaded() was called. More...

 get_object
 Returns the associated object. More...

 get_resident
 Returns the resident flag associated with this object. More...

- Public Attributes inherited from TypedObject
 get_type


Detailed Description

Caches a GeomVertexArrayData in the DirectX device as a vertex buffer.

Definition at line 27 of file dxVertexBufferContext9.h.

Member Function Documentation

◆ evict_lru()

void DXVertexBufferContext9::evict_lru ( )
virtual

Evicts the page from the LRU.

Called internally when the LRU determines that it is full. May also be called externally when necessary to explicitly evict the page.

It is legal for this method to either evict the page as requested, do nothing (in which case the eviction will be requested again at the next epoch), or requeue itself on the tail of the queue (in which case the eviction will be requested again much later).

Reimplemented from AdaptiveLruPage.

Definition at line 174 of file dxVertexBufferContext9.cxx.

References AdaptiveLruPage::dequeue_lru(), VertexBufferContext::mark_unloaded(), and VertexBufferContext::update_data_size_bytes().


The documentation for this class was generated from the following files:
