This is a specialization on Geom for containing a primitive intended to represent a TextGlyph. More...

#include "geomTextGlyph.h"

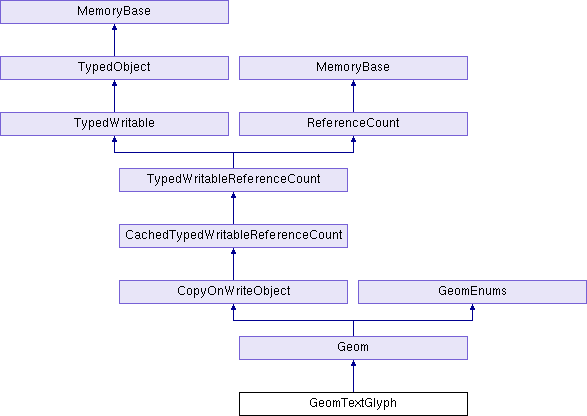

Inheritance diagram for GeomTextGlyph:

Public Member Functions
	GeomTextGlyph (const TextGlyph glyph, const GeomVertexData data)

	GeomTextGlyph (const GeomVertexData *data)

	GeomTextGlyph (const GeomTextGlyph &copy)

	GeomTextGlyph (const Geom &copy, const TextGlyph *glyph)

void	add_glyph (const TextGlyph *glyph)
	Adds a glyph to the list of glyphs referenced by this Geom. More...

virtual bool	copy_primitives_from (const Geom *other)
	Copies the primitives from the indicated Geom into this one. More...

void	count_geom (const Geom *other)
	Records the reference count of the other Geom within this Geom, as if the primitives were copied in via copy_primitives_from() (but does not actually copy any primitives). More...

virtual TypeHandle	force_init_type ()

virtual TypeHandle	get_type () const

virtual Geom *	make_copy () const
	Returns a newly-allocated Geom that is a shallow copy of this one. More...

void	operator= (const GeomTextGlyph &copy)

virtual void	output (std::ostream &out) const

virtual void	write (std::ostream &out, int indent_level=0) const

Public Member Functions inherited from Geom
	Geom (const GeomVertexData *data)

void	add_primitive (const GeomPrimitive *primitive)
	Inserts a new GeomPrimitive structure to the Geom object. More...

void	calc_tight_bounds (LPoint3 &min_point, LPoint3 &max_point, bool &found_any, const GeomVertexData vertex_data, bool got_mat, const LMatrix4 &mat, Thread current_thread) const
	Expands min_point and max_point to include all of the vertices in the Geom, if any. More...

void	calc_tight_bounds (LPoint3 &min_point, LPoint3 &max_point, bool &found_any, Thread *current_thread) const
	Expands min_point and max_point to include all of the vertices in the Geom, if any. More...

void	calc_tight_bounds (LPoint3 &min_point, LPoint3 &max_point, bool &found_any, const GeomVertexData vertex_data, bool got_mat, const LMatrix4 &mat, const InternalName column_name, Thread *current_thread) const
	Similar to calc_tight_bounds(), for UV coordinates or other named columns. More...

bool	check_valid () const
	Verifies that the all of the primitives within the geom reference vertices that actually exist within the geom's GeomVertexData. More...

bool	check_valid (const GeomVertexData *vertex_data) const
	Verifies that the all of the primitives within the geom reference vertices that actually exist within the indicated GeomVertexData. More...

void	clear_bounds ()
	Reverses the effect of a previous call to set_bounds(), and allows the bounding volume to be automatically computed once more based on the vertices. More...

void	clear_cache ()

void	clear_cache_stage (Thread *current_thread)
	Removes all of the previously-cached results of munge_geom(), at the current pipeline stage and upstream. More...

void	clear_primitives ()
	Removes all the primitives from the Geom object (but keeps the same table of vertices). More...

	CPT (GeomVertexData) get_vertex_data(Thread *current_thread

	CPT (GeomVertexData) get_animated_vertex_data(bool force

	CPT (GeomPrimitive) get_primitive(size_t i) const

	CPT (BoundingVolume) get_bounds(Thread *current_thread

void	decompose_in_place ()
	Decomposes all of the primitives within this Geom, leaving the results in place. More...

void	doubleside_in_place ()
	Doublesides all of the primitives within this Geom, leaving the results in place. More...

bool	draw (GraphicsStateGuardianBase gsg, const GeomVertexData vertex_data, bool force, Thread *current_thread) const
	Actually draws the Geom with the indicated GSG, using the indicated vertex data (which might have been pre-munged to support the GSG's needs). More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

BoundingVolume::BoundsType	get_bounds_type () const

int	get_geom_rendering () const

UpdateSeq	get_modified (Thread *current_thread=Thread::get_current_thread()) const

int	get_nested_vertices (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_bytes () const

size_t	get_num_primitives () const

PrimitiveType	get_primitive_type () const

ShadeModel	get_shade_model () const

UsageHint	get_usage_hint () const
	Returns the minimum (i.e. More...

void	insert_primitive (size_t i, const GeomPrimitive *primitive)

bool	is_empty () const

bool	is_prepared (PreparedGraphicsObjects *prepared_objects) const
	Returns true if the geom has already been prepared or enqueued for preparation on the indicated GSG, false otherwise. More...

void	make_adjacency_in_place ()
	Replaces the GeomPrimitives within this Geom with corresponding versions with adjacency information. More...

void	make_lines_in_place ()
	Replaces the GeomPrimitives within this Geom with corresponding GeomLines, representing a wireframe of the primitives. More...

int	make_nonindexed (bool composite_only)
	Converts the geom from indexed to nonindexed by duplicating vertices as necessary. More...

void	make_patches_in_place ()
	Replaces the GeomPrimitives within this Geom with corresponding GeomPatches. More...

void	make_points_in_place ()
	Replaces the GeomPrimitives within this Geom with corresponding GeomPoints. More...

void	mark_bounds_stale () const

void	offset_vertices (const GeomVertexData *data, int offset)
	Replaces a Geom's vertex table with a new table, and simultaneously adds the indicated offset to all vertex references within the Geom's primitives. More...

void	operator= (const Geom &copy)
	The copy assignment operator is not pipeline-safe. More...

void	prepare (PreparedGraphicsObjects *prepared_objects)
	Indicates that the geom should be enqueued to be prepared in the indicated prepared_objects at the beginning of the next frame. More...

GeomContext *	prepare_now (PreparedGraphicsObjects prepared_objects, GraphicsStateGuardianBase gsg)
	Creates a context for the geom on the particular GSG, if it does not already exist. More...

	PT (GeomVertexData) modify_vertex_data()

	PT (GeomPrimitive) modify_primitive(size_t i)

	PT (Geom) decompose() const

	PT (Geom) doubleside() const

	PT (Geom) reverse() const

	PT (Geom) rotate() const

	PT (Geom) unify(int max_indices

	PT (Geom) make_points() const

	PT (Geom) make_lines() const

	PT (Geom) make_patches() const

	PT (Geom) make_adjacency() const

bool	release (PreparedGraphicsObjects *prepared_objects)
	Frees the geom context only on the indicated object, if it exists there. More...

int	release_all ()
	Frees the context allocated on all objects for which the geom has been declared. More...

void	remove_primitive (size_t i)

bool	request_resident () const
	Returns true if all the primitive arrays are currently resident in memory. More...

void	reverse_in_place ()
	Reverses all of the primitives within this Geom, leaving the results in place. More...

void	rotate_in_place ()
	Rotates all of the primitives within this Geom, leaving the results in place. More...

void	set_bounds (const BoundingVolume *volume)
	Resets the bounding volume so that it is the indicated volume. More...

void	set_bounds_type (BoundingVolume::BoundsType bounds_type)

void	set_primitive (size_t i, const GeomPrimitive *primitive)

void	set_usage_hint (UsageHint usage_hint)
	Changes the UsageHint hint for all of the primitives on this Geom to the same value. More...

void	set_vertex_data (const GeomVertexData *data)
	Replaces the Geom's underlying vertex data table with a completely new table. More...

void	transform_vertices (const LMatrix4 &mat)
	Applies the indicated transform to all of the vertices in the Geom. More...

void	unify_in_place (int max_indices, bool preserve_order)
	Unifies all of the primitives contained within this Geom into a single (or as few as possible, within the constraints of max_indices) primitive objects. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from CopyOnWriteObject
	CopyOnWriteObject (const CopyOnWriteObject &copy)

void	operator= (const CopyOnWriteObject &copy)

Public Member Functions inherited from CachedTypedWritableReferenceCount
void	cache_ref () const
	Explicitly increments the cache reference count and the normal reference count simultaneously. More...

void	cache_ref_only () const
	Decrements the cache reference count without affecting the normal reference count. More...

bool	cache_unref () const
	Explicitly decrements the cache reference count and the normal reference count simultaneously. More...

int	get_cache_ref_count () const

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_GeomTextGlyph (const FactoryParams &params)
	Factory method to generate a GeomTextGlyph object. More...

static void	register_with_read_factory ()
	Factory method to generate a GeomTextGlyph object. More...

Static Public Member Functions inherited from Geom
static TypeHandle	get_class_type ()

static UpdateSeq	get_next_modified ()
	Returns a monotonically increasing sequence. More...

static void	init_type ()

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type Geom. More...

Static Public Member Functions inherited from CopyOnWriteObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CachedTypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Friends
class	TextAssembler

Additional Inherited Members
Public Types inherited from Geom
typedef pmap< const CacheKey *, PT(CacheEntry), IndirectLess< CacheKey > >	Cache

Public Types inherited from GeomEnums
enum	AnimationType { AT_none, AT_panda, AT_hardware }

enum	Contents { C_other, C_point, C_clip_point, C_vector, C_texcoord, C_color, C_index, C_morph_delta, C_matrix, C_normal }

enum	GeomRendering { GR_indexed_point = 0x00001, GR_indexed_other = 0x10000, GR_indexed_bits = 0x10001, GR_point = 0x00002, GR_point_uniform_size = 0x00004, GR_per_point_size = 0x00008, GR_point_perspective = 0x00010, GR_point_aspect_ratio = 0x00020, GR_point_scale = 0x00040, GR_point_rotate = 0x00080, GR_point_sprite = 0x00100, GR_point_sprite_tex_matrix = 0x00200, GR_point_bits = 0x003fe, GR_triangle_strip = 0x00400, GR_triangle_fan = 0x00800, GR_line_strip = 0x01000, GR_composite_bits = 0x01c00, GR_strip_cut_index = 0x20000, GR_flat_first_vertex = 0x02000, GR_flat_last_vertex = 0x04000, GR_shade_model_bits = 0x06000, GR_render_mode_wireframe = 0x40000, GR_render_mode_point = 0x80000, GR_adjacency = 0x100000 }

enum	NumericType { NT_uint8, NT_uint16, NT_uint32, NT_packed_dcba, NT_packed_dabc, NT_float32, NT_float64, NT_stdfloat, NT_int8, NT_int16, NT_int32, NT_packed_ufloat }

enum	PrimitiveType { PT_none, PT_polygons, PT_lines, PT_points, PT_patches }

enum	ShadeModel { SM_uniform, SM_smooth, SM_flat_first_vertex, SM_flat_last_vertex }

enum	UsageHint { UH_client, UH_stream, UH_dynamic, UH_static, UH_unspecified }

Public Attributes inherited from Geom
Thread *current_thread	const

bool preserve_order	const

	get_bounds_type
	Returns the bounding volume type set with set_bounds_type(). More...

	get_geom_rendering
	Returns the set of GeomRendering bits that represent the rendering properties required to properly render this Geom. More...

	get_modified

	get_num_bytes
	Returns the number of bytes consumed by the geom and its primitives (but not including its vertex table). More...

	get_num_primitives

	get_primitive

	get_primitive_type
	Returns the fundamental primitive type that is common to all GeomPrimitives added within the Geom. More...

	get_shade_model
	Returns the shade model common to all of the individual GeomPrimitives that have been added to the geom. More...

	insert_primitive
	Inserts a new GeomPrimitive structure to the Geom object. More...

	remove_primitive
	Removes the ith primitive from the list. More...

	set_bounds_type

	set_primitive

Public Attributes inherited from CachedTypedWritableReferenceCount
	get_cache_ref_count
	Returns the current reference count. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is a specialization on Geom for containing a primitive intended to represent a TextGlyph.

Its sole purpose is to maintain the geom count on the glyph, so we can determine the actual usage count on a dynamic glyph (and thus know when it is safe to recycle the glyph).

Definition at line 27 of file geomTextGlyph.h.

Member Function Documentation

◆ add_glyph()

void GeomTextGlyph::add_glyph ( const TextGlyph * glyph )

Adds a glyph to the list of glyphs referenced by this Geom.

Definition at line 178 of file geomTextGlyph.cxx.

◆ copy_primitives_from()

bool GeomTextGlyph::copy_primitives_from ( const Geom * other )

virtual

Copies the primitives from the indicated Geom into this one.

This does require that both Geoms contain the same fundamental type primitives, both have a compatible shade model, and both use the same GeomVertexData. Both Geoms must also be the same specific class type (i.e. if one is a GeomTextGlyph, they both must be.)

Returns true if the copy is successful, or false otherwise (because the Geoms were mismatched).

Reimplemented from Geom.

Definition at line 107 of file geomTextGlyph.cxx.

References Geom::copy_primitives_from().

◆ count_geom()

void GeomTextGlyph::count_geom ( const Geom * other )

Records the reference count of the other Geom within this Geom, as if the primitives were copied in via copy_primitives_from() (but does not actually copy any primitives).

This is particularly necessary for GeomTextGlyph's reference counting mechanism.

Does nothing if the other Geom is not a GeomTextGlyph.

Definition at line 131 of file geomTextGlyph.cxx.

References TypedObject::is_of_type().
