AnimChannelScalarDynamic Class Reference

An animation channel that accepts a scalar each frame from some dynamic input provided by code. More...

#include "animChannelScalarDynamic.h"

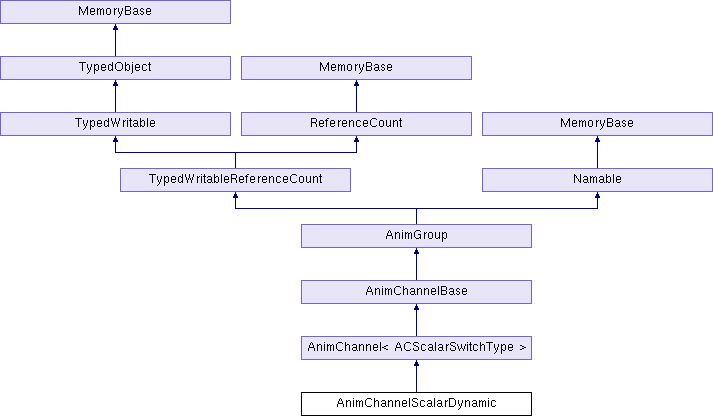

Inheritance diagram for AnimChannelScalarDynamic:
AnimChannel< SwitchType > AnimChannelBase AnimGroup TypedWritableReferenceCount Namable TypedWritable ReferenceCount MemoryBase TypedObject MemoryBase MemoryBase

Public Member Functions

 AnimChannelScalarDynamic (const std::string &name)

virtual int complete_pointers (TypedWritable **plist, BamReader *manager)
 Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

void fillin (DatagramIterator &scan, BamReader *manager)
 Function that reads out of the datagram (or asks manager to read) all of the data that is needed to re-create this object and stores it in the appropiate place. More...

virtual TypeHandle force_init_type ()

virtual TypeHandle get_type () const

virtual void get_value (int frame, PN_stdfloat &value)

PN_stdfloat get_value () const

PandaNodeget_value_node () const

virtual bool has_changed (int last_frame, double last_frac, int this_frame, double this_frac)
 Returns true if the value has changed since the last call to has_changed(). More...

void set_value (PN_stdfloat value)

void set_value_node (PandaNode *node)

virtual void write_datagram (BamWriter *manager, Datagram &dg)
 Function to write the important information in the particular object to a Datagram. More...

- Public Member Functions inherited from AnimChannel< SwitchType >
 AnimChannel (AnimGroup *parent, const std::string &name)
 This is the normal constructor, which automatically places the AnimChannel in the previously-created hierarchy. More...

virtual void get_hpr (int frame, LVecBase3 &hpr)
 Returns the h, p, and r components associated with the current frame. More...

virtual void get_pos (int frame, LVecBase3 &pos)
 Returns the x, y, and z translation components associated with the current frame. More...

virtual void get_quat (int frame, LQuaternion &quat)
 Returns the rotation component associated with the current frame, expressed as a quaternion. More...

virtual void get_scale (int frame, LVecBase3 &scale)
 Returns the x, y, and z scale components associated with the current frame. More...

virtual void get_shear (int frame, LVecBase3 &shear)
 Returns the a, b, and c shear components associated with the current frame. More...

virtual void get_value (int frame, ValueType &value)=0

virtual void get_value_no_scale_shear (int frame, ValueType &value)
 Returns the value associated with the current frame, with no scale or share components. More...

virtual TypeHandle get_value_type () const
 Returns the TypeHandle associated with the ValueType we return. More...

- Public Member Functions inherited from AnimChannelBase
 AnimChannelBase (AnimGroup *parent, const std::string &name)
 This is the normal constructor, which automatically places the AnimChannel in the previously-created hierarchy. More...

- Public Member Functions inherited from AnimGroup
 AnimGroup (AnimGroup *parent, const std::string &name)
 Creates the AnimGroup, and adds it to the indicated parent. More...

AnimGroupfind_child (const std::string &name) const
 Returns the first descendant found with the indicated name, or NULL if no such descendant exists. More...

AnimGroupget_child (int n) const

AnimGroupget_child_named (const std::string &name) const
 Returns the first child found with the indicated name, or NULL if no such child exists. More...

int get_num_children () const

virtual void output (std::ostream &out) const
 Writes a one-line description of the group. More...

void sort_descendants ()
 Sorts the children nodes at each level of the hierarchy into alphabetical order. More...

virtual void write (std::ostream &out, int indent_level) const
 Writes a brief description of the group and all of its descendants. More...

- Public Member Functions inherited from TypedWritableReferenceCount
 TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCountas_reference_count ()
 Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void operator= (const TypedWritableReferenceCount &copy)

- Public Member Functions inherited from TypedWritable
 TypedWritable (const TypedWritable &copy)

vector_uchar encode_to_bam_stream () const
 Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
 Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void finalize (BamReader *manager)
 Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq get_bam_modified () const
 Returns the current bam_modified counter. More...

void mark_bam_modified ()
 Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void operator= (const TypedWritable &copy)

virtual bool require_fully_complete () const
 Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void update_bam_nested (BamWriter *manager)
 Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...

- Public Member Functions inherited from Namable
 Namable (const std::string &initial_name="")

void clear_name ()
 Resets the Namable's name to empty. More...

const std::string & get_name () const

bool has_name () const
 Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void output (std::ostream &out) const
 Outputs the Namable. More...

void set_name (const std::string &name)


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

static TypedWritablemake_AnimChannelScalarDynamic (const FactoryParams &params)
 Factory method to generate a AnimChannelScalarDynamic object. More...

static void register_with_read_factory ()
 Factory method to generate a AnimChannelScalarDynamic object. More...

- Static Public Member Functions inherited from AnimChannel< SwitchType >
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from AnimChannelBase
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from AnimGroup
static TypeHandle get_class_type ()

static void init_type ()

static TypedWritablemake_AnimGroup (const FactoryParams &params)
 Factory method to generate a AnimGroup object. More...

static void register_with_read_factory ()
 Factory method to generate a AnimGroup object. More...

- Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

static PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

- Static Public Member Functions inherited from TypedWritable
static bool decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr)
 Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from Namable
static TypeHandle get_class_type ()

static void init_type ()


Public Attributes

 get_value
 Gets the value of the channel at the indicated frame. More...

 get_value_node
 Returns the node that was set via set_value_node(), if any. More...

 set_value
 Explicitly sets the value. More...

 set_value_node
 Specifies a node whose transform will be queried each frame to implicitly specify the transform of this joint. More...

- Public Attributes inherited from AnimGroup
 get_child
 Returns the nth child of the group. More...

 get_num_children
 Returns the number of child nodes of the group. More...

- Public Attributes inherited from TypedWritableReferenceCount
static BamReaderreader = nullptr)

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...

- Public Attributes inherited from Namable
 get_name

 set_name


Additional Inherited Members

- Public Types inherited from AnimChannel< SwitchType >
typedef SwitchType::ValueType ValueType

- Static Public Attributes inherited from TypedWritable
static TypedWritable *const Null = nullptr


Detailed Description

An animation channel that accepts a scalar each frame from some dynamic input provided by code.

This object operates in two modes: in explicit mode, the programmer should call set_value() each frame to indicate the new value; in implicit mode, the programmer should call set_value_node() to indicate the node whose X component will be copied to the scalar each frame.

Definition at line 33 of file animChannelScalarDynamic.h.

Member Function Documentation

◆ complete_pointers()

int AnimChannelScalarDynamic::complete_pointers ( TypedWritable **  p_list,
BamReader manager
)
virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from AnimGroup.

Definition at line 147 of file animChannelScalarDynamic.cxx.

◆ fillin()

void AnimChannelScalarDynamic::fillin ( DatagramIterator scan,
BamReader manager
)
virtual

Function that reads out of the datagram (or asks manager to read) all of the data that is needed to re-create this object and stores it in the appropiate place.

Reimplemented from AnimChannelBase.

Definition at line 163 of file animChannelScalarDynamic.cxx.

References DatagramIterator::get_stdfloat(), and BamReader::read_pointer().

Referenced by make_AnimChannelScalarDynamic().

◆ has_changed()

bool AnimChannelScalarDynamic::has_changed ( int  last_frame,
double  last_frac,
int  this_frame,
double  this_frac
)
virtual

Returns true if the value has changed since the last call to has_changed().

last_frame is the frame number of the last call; this_frame is the current frame number.

Reimplemented from AnimChannelBase.

Definition at line 68 of file animChannelScalarDynamic.cxx.

◆ make_AnimChannelScalarDynamic()

TypedWritable * AnimChannelScalarDynamic::make_AnimChannelScalarDynamic ( const FactoryParams params)
static

Factory method to generate a AnimChannelScalarDynamic object.

Definition at line 177 of file animChannelScalarDynamic.cxx.

References fillin(), and parse_params().

Referenced by register_with_read_factory().

◆ register_with_read_factory()

void AnimChannelScalarDynamic::register_with_read_factory ( )
static

◆ write_datagram()

void AnimChannelScalarDynamic::write_datagram ( BamWriter manager,
Datagram dg
)
virtual

Function to write the important information in the particular object to a Datagram.

Reimplemented from AnimChannelBase.

Definition at line 135 of file animChannelScalarDynamic.cxx.

References Datagram::add_stdfloat(), AnimChannelBase::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_value

PN_stdfloat AnimChannelScalarDynamic::get_value
inline

Gets the value of the channel at the indicated frame.

Gets the value of the channel.

This will return the value explicitly specified by set_value() unless a value node was specified using set_value_node().

Definition at line 51 of file animChannelScalarDynamic.h.

◆ get_value_node

PandaNode * AnimChannelScalarDynamic::get_value_node
inline

Returns the node that was set via set_value_node(), if any.

Definition at line 52 of file animChannelScalarDynamic.h.

◆ set_value

void AnimChannelScalarDynamic::set_value

Explicitly sets the value.

This will remove any node assigned via set_value_node().

Definition at line 51 of file animChannelScalarDynamic.h.

◆ set_value_node

void AnimChannelScalarDynamic::set_value_node

Specifies a node whose transform will be queried each frame to implicitly specify the transform of this joint.

This will override the values set by set_value().

Definition at line 52 of file animChannelScalarDynamic.h.

Referenced by MovingPartScalar::apply_control().


The documentation for this class was generated from the following files:
